| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,554 pcs
|
10554 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Max) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

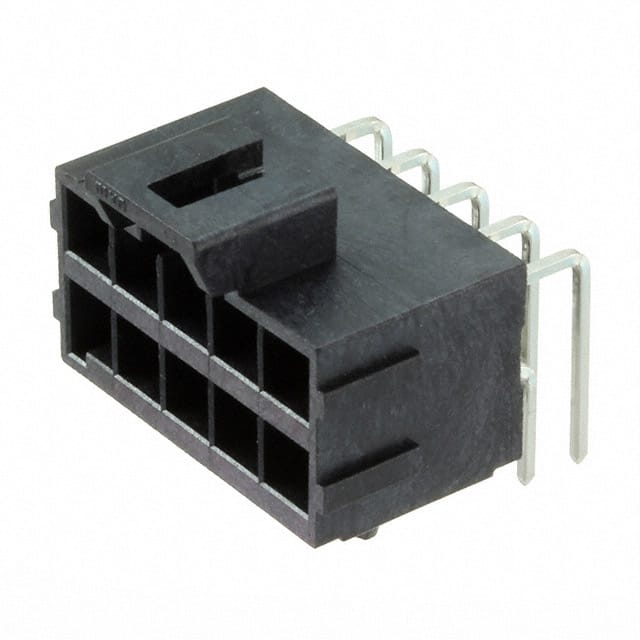

The Molex 1723161110 is a 10-position, 2-row right-angle header from the Ultra-Fit power connector series. It features a 3.50mm pitch, shrouded 4-wall design with a latch holder for secure mating. The header is through-hole mounted with solder termination and accepts male pin contacts made of copper alloy with a tin finish (60.0µin). The insulation is black liquid crystal polymer (LCP) rated UL94 V-0, and the operating temperature range is -40°C to 105°C.
Electrical ratings include a current rating of 14.0A maximum, voltage rating of 600V AC/DC, contact resistance of 7 milliohms, dielectric withstanding voltage of 1800V AC, and insulation resistance of 1000 megohms minimum. Mechanical characteristics include a mating force of 4.5N maximum, contact insertion force of 14.7N maximum, and durability of 25 cycles minimum. The header also includes a board guide feature for alignment.
This connector is suitable for board-to-cable/wire applications in consumer appliances, telecommunications, industrial equipment, medical devices, and automotive systems. Packaging options include bag, tray, or reel.
| Qty | Low | High |
|---|---|---|
| 1,280+ | $0.80 | $0.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions, all loaded.
3.50mm (0.138 inches).
14.0A maximum.
600V AC/DC.
Through hole, right angle.
-40°C to 105°C.
Tin, 60.0µin (1.52µm).
