| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,300 pcs
|
3300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Fastening Type | |
| Features | |
| Glow-Wire Capable | |
| Halogen Free | |
| Insertion Force to PCB | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Force | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Un-mating Force | |
| Voltage Rating |

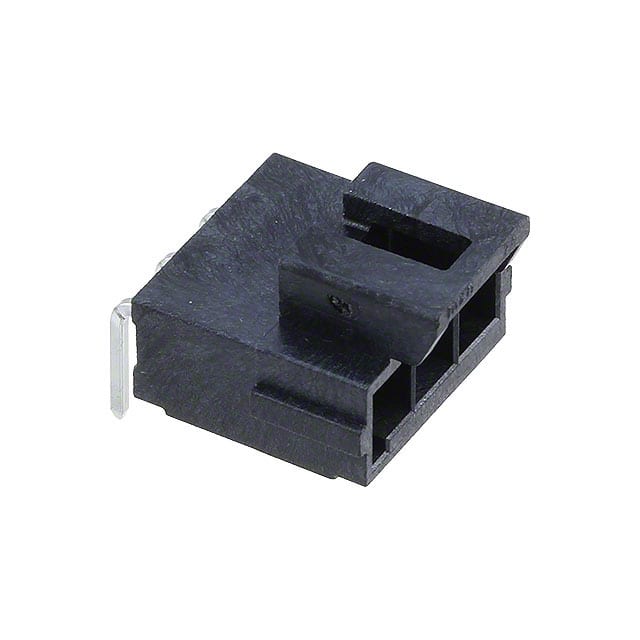

The Molex 1723101103 is a single-row right-angle header from the Ultra-Fit series, designed for wire-to-board power connections. It features 3 positions with a 3.50mm pitch, allowing for compact PCB layouts while delivering up to 14.0A per contact. The header is rated for 600V and has a contact resistance of 7mΩ, ensuring efficient power transmission.
The connector employs a shrouded 4-wall design with a latch holder for secure mating and an audible click upon connection. The tin-plated contacts (60µin thickness) provide reliable conductivity and corrosion resistance. The housing is made of Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, and the operating temperature range is -40°C to 105°C.
This header is through-hole mounted with a right-angle orientation, making it suitable for board-to-cable/wire applications. It mates with Ultra-Fit receptacle series 172258, 172298, 172256, and 172286. The part is available in Bag, Tray, or Reel packaging and is compliant with RoHS, Halogen Free, and Glow Wire standards.
3 positions.
3.50mm.
14.0A.
600V.
Through Hole, Right Angle.
-40°C to 105°C.
Tin with 60µin thickness.
