| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:25:44 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA File Number | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Fastening Type | |
| Features | |
| Glow-Wire Capable | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Force | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| ul_file_number |

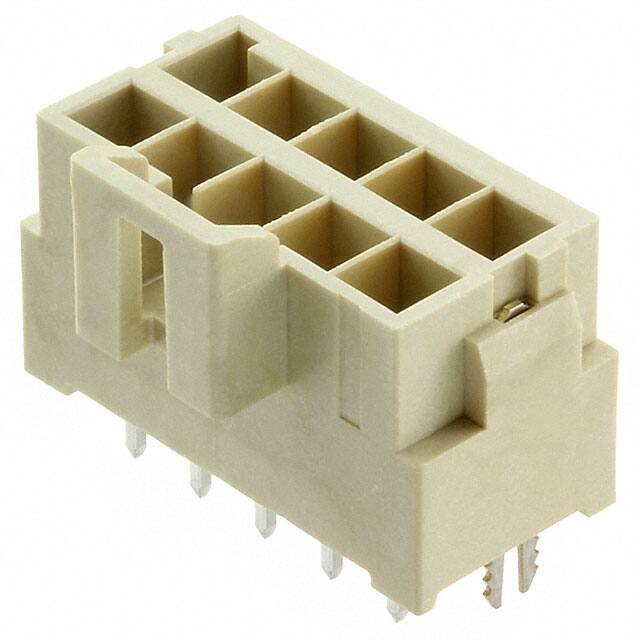

The Molex 1722992110 is a dual-row vertical header from the Ultra-Fit power connector series. It features 10 positions arranged in 2 rows with a 3.50mm pitch and 4.60mm row spacing. The connector is designed for board-to-cable/wire applications and uses a shrouded 4-wall housing with latch holder fastening for secure mating.
Electrical ratings include a current rating of 14.0A per contact and a voltage rating of 400V. The contacts are made of copper alloy with a tin finish (60.0µin) and have a square shape. The insulation is natural-colored Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C.
Mechanical features include a mating contact length of 3.20mm, insulation height of 11.80mm, and board guide with solder retention features. The connector is rated for 25 mating cycles and has a mating force of 4.5N. It is halogen-free and glow wire capable. Packaging options include bag, tray, and reel.
The pitch is 3.50mm (0.138").
It has 10 positions arranged in 2 rows.
The current rating is 14.0A per contact.
The voltage rating is 400V (datasheet lists 600V, conflict flagged).
Through hole mounting with solder termination.
-40°C to 105°C.
Yes, it is RoHS3 compliant.
