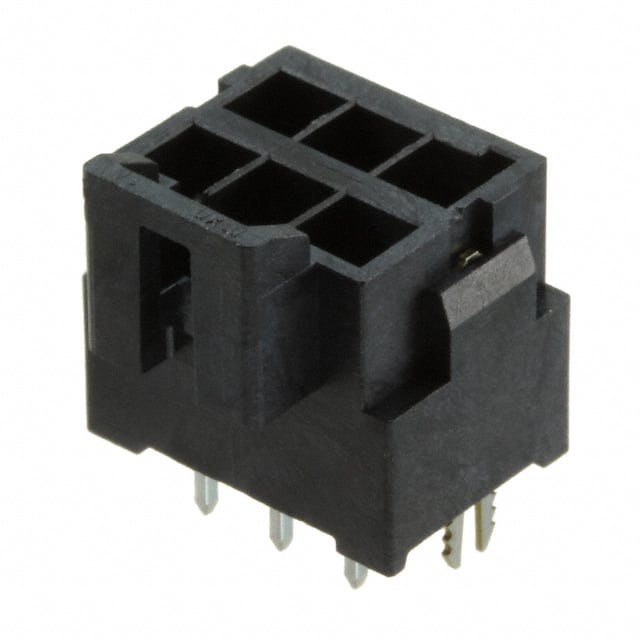

The Molex 1722991106 is a dual-row vertical header from the Ultra-Fit series, designed for wire-to-board applications. It features 6 positions arranged in 2 rows with a 3.50mm pitch and 4.60mm row spacing. The connector is shrouded with a 4-wall design and includes a latch holder fastening type for secure mating.
Electrical ratings include a current rating of 14.0A per contact and a voltage rating of 400V. The contact resistance is 7mΩ maximum, and the dielectric withstanding voltage is 1800VAC. The insulation resistance is 1000MΩ minimum. The operating temperature range is -40°C to 105°C.
The header uses copper alloy contacts with a tin finish (1.52µm thickness) and a square contact shape. The insulation material is liquid crystal polymer (LCP) rated UL94 V-0, and the housing is black. Features include board guide and solder retention. The product is halogen-free and glow wire capable. Packaging options include bag, tray, or reel.
The connector has 6 positions arranged in 2 rows.
The pitch is 3.50mm with a row spacing of 4.60mm.
The current rating is 14.0A per contact.
The voltage rating is 400V.
The mounting type is through hole with solder termination.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS3 compliant.
