| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force (max) | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Fastening Type | |
| Features | |
| Glow-Wire Capable | |
| Halogen Free | |
| Industrial Grade | |
| Insertion Force to PCB | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Force | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| PCB Thickness | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

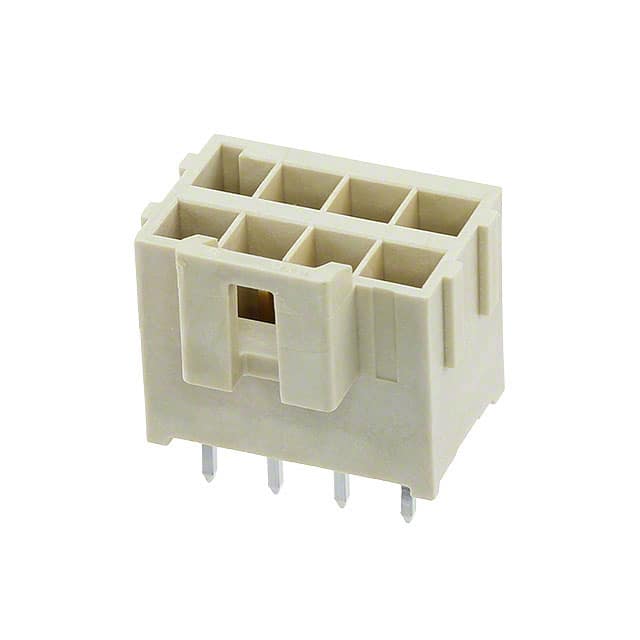

The Molex 1722982308 is a vertical header from the Ultra-Fit power connector series, designed for board-to-cable/wire applications. It features 8 positions in a 2-row configuration with a 3.50mm pitch, providing a current rating of 14.0A and a voltage rating of 600V.
The connector is fully shrouded (4-wall design) with a latch holder fastening type for secure mating. It is constructed with a Liquid Crystal Polymer (LCP) insulation in natural color, rated UL94 V-0 for flammability. Contacts are made of copper alloy with a tin finish (0.76µm thickness).
Electrical specifications include a dielectric withstanding voltage of 1800 VAC, contact resistance of 7 mΩ, and insulation resistance of 1000 MΩ. The operating temperature range is -40°C to 105°C.
This header is terminated via kinked pin solder through hole mounting and is designed for a standard 1.57mm PCB thickness. It is RoHS compliant and halogen free. Packaging options include bag, tray, or reel.
The pitch is 3.50mm (0.138 inches).
It has 8 positions in 2 rows.
The current rating is 14.0A.
The voltage rating is 600V AC (RMS) or DC.
Through hole with kinked pin solder termination.
Yes, it is RoHS3 compliant and halogen free.
-40°C to 105°C.
