| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Fastening Type | |
| Features | |
| Glow-Wire Capable | |
| Halogen Free | |
| Industrial Grade | |
| Insertion Force to PCB | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Force | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

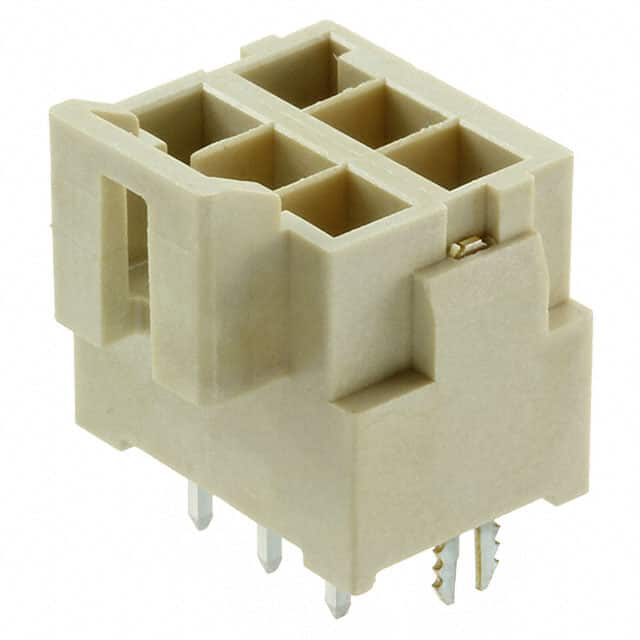

The Molex 1722982306 is a dual-row vertical header from the Ultra-Fit power connector series. It features 6 male pin contacts arranged in 2 rows with a 3.50mm pitch, providing a compact wire-to-board interconnect solution. The header is fully shrouded with a 4-wall design and includes a latch holder for secure mating.
Electrical ratings include a current rating of 14.0A per contact and a voltage rating of 600V. The contacts are made of copper alloy with a tin finish (30.0µin) and have a square shape. The insulation is natural-colored Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.
Mechanical specifications include a contact insertion force of 14.7N max, a mating force of 4.5N max, and a durability of 25 cycles. The header is designed for through-hole soldering with kinked pins for retention. It is RoHS compliant, halogen-free, and glow wire capable.
The pitch is 3.50mm (0.138 inches).
It has 6 positions arranged in 2 rows.
The current rating is 14.0A per contact.
The voltage rating is 600V.
It uses through-hole mounting with kinked pin solder termination.
Yes, it is RoHS compliant and also halogen-free and glow wire capable.
The operating temperature range is -40 to +105°C.
