| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Contact_Retention_Force | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mating Force | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Method | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

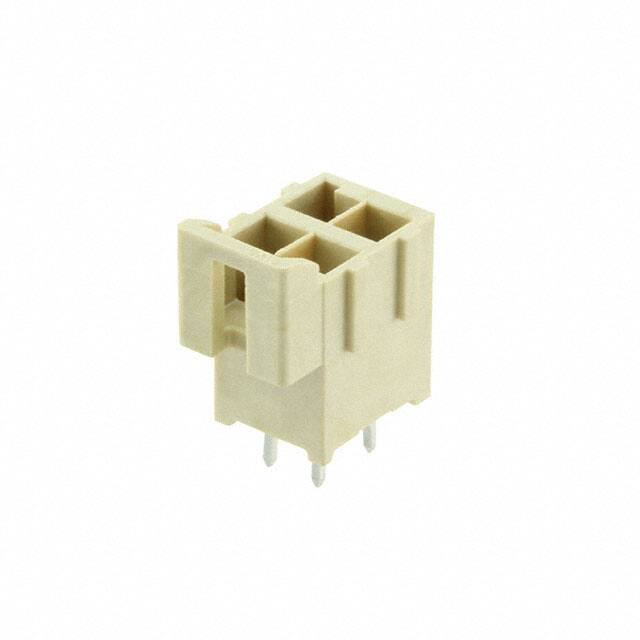

The Molex 1722982304 is a dual-row vertical header from the Ultra-Fit 172298 series, designed for board-to-wire power applications. It offers 4 positions with a 3.50mm pitch and through-hole solder termination with kinked pins for secure PCB retention. The header is fully shrouded with a 4-wall design and includes a latch holder for positive locking and a board guide for alignment.
Electrical ratings include 14.0A per circuit, 400V voltage rating, and low contact resistance of 7 milliohms. The insulator is made of liquid crystal polymer (LCP) rated UL94 V-0, with natural color. Operating temperature range is -40°C to 120°C. Contacts are copper alloy with tin plating and a square pin shape.
This connector is part of Molex's Ultra-Fit tangless system, providing a compact, high-current solution for power distribution in industrial, automotive, and consumer electronics. Packaging options include bag, tray, and reel.
It has 4 positions arranged in 2 rows.
The pitch is 3.50mm.
It is rated for 14.0A per circuit.
The voltage rating is 400V.
It is through-hole mounting with solder termination.
The operating temperature range is -40°C to 120°C.
Yes, it is RoHS3 compliant and halogen-free.
