| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31,754 pcs
|
31754 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Fastening Type | |
| Features | |
| Glow-Wire Capable | |
| Halogen Free | |
| Industrial Grade | |
| Insertion Force to PCB | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Force | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| PCB Thickness | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Unmating Force | |
| Voltage Rating |

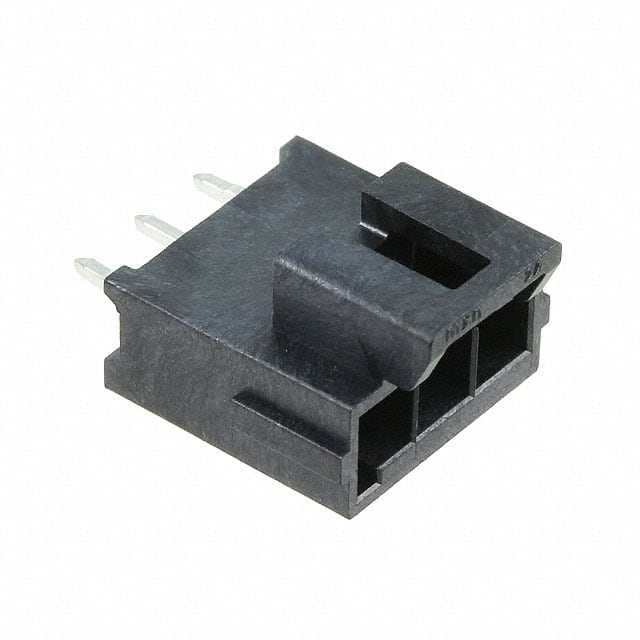

The Molex 1722861103 is a single-row vertical header from the Ultra-Fit power connector family. It features 3 positions with a 3.50mm pitch and a shrouded 4-wall design for robust mating. The header uses through hole mounting with kinked pin solder termination and a latch holder fastening system for secure connection.
Electrical ratings include 14.0A current capacity and 600V voltage rating, with a maximum contact resistance of 7mΩ and dielectric withstanding voltage of 1800VAC. The operating temperature range is -40°C to 105°C. Contacts are made of copper alloy with a tin finish (60.0µin thickness) and the housing is black liquid crystal polymer (LCP) with UL94 V-0 flammability rating.
The header is designed for board-to-board or cable applications and includes a board guide feature. It is halogen free and glow wire capable. Packaging options include bag, tray, or reel.
It has 3 positions, all loaded.
The pitch is 3.50mm.
The current rating is 14.0A.
The voltage rating is 600V.
Through hole mounting with kinked pin solder termination.
-40°C to 105°C.
Yes, it is RoHS3 compliant and halogen free.
