| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,636 pcs
|
23636 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style |

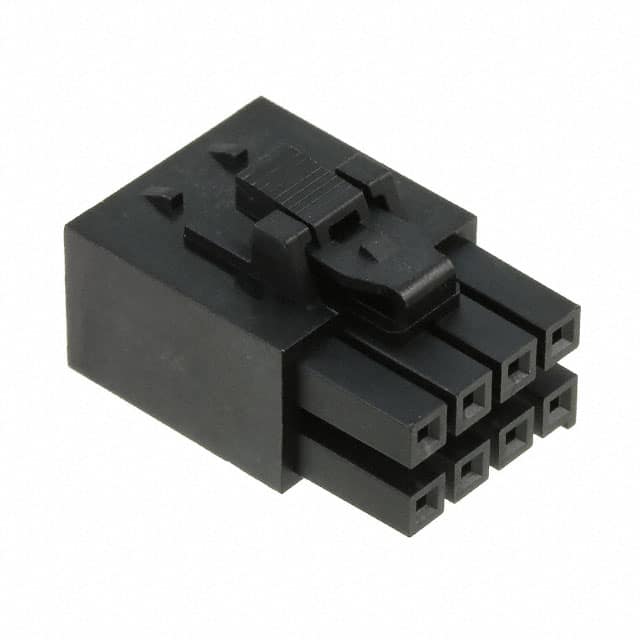

The Molex 1722581108 is an Ultra-Fit TPA (Terminal Position Assurance) receptacle housing designed for power wire-to-board applications. It features 8 circuits arranged in 2 rows with a 3.50mm pitch and a 4.60mm row spacing. The housing is made of black nylon with a 94V-0 flammability rating and is glow-wire capable.
This free-hanging (in-line) housing uses a latch lock fastening system and is polarized and keyed to the mating part. It accepts female socket contacts with crimp termination. The operating temperature range is -40°C to +120°C.
The housing is packaged in a bag and has a net weight of 2.220 g. It is RoHS3 compliant, REACH unaffected, and low-halogen. It mates with Ultra-Fit right angle header 172316 and vertical headers 172298/172299, and uses Ultra-Fit female crimp terminal 172253 and TPA retainer 172264.
| Qty | Low | High |
|---|---|---|
| 350+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions arranged in 2 rows.
The pitch is 3.50mm (0.138") with a row spacing of 4.60mm (0.181").
It is a free hanging (in-line) receptacle housing.
Yes, it is glow-wire capable.
The operating temperature range is -40°C to +120°C.
