1721032 6-position, 2-level wire-to-board terminal block with 5mm pitch, 15A current rating, and 300V voltage rating. Screw rising cage clamp termination for 12-30 AWG wires.
Mfr Part #:

1721032

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
6-position, 2-level wire-to-board terminal block with 5mm pitch, 15A current rating, and 300V voltage rating. Screw rising cage clamp termination for 12-30 AWG wires.
✓ Total Stock: 82 pcs

1721032 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
32 pcs
On Request
32 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1721032 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Features
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1721032 Description

Short technical summary and product information.

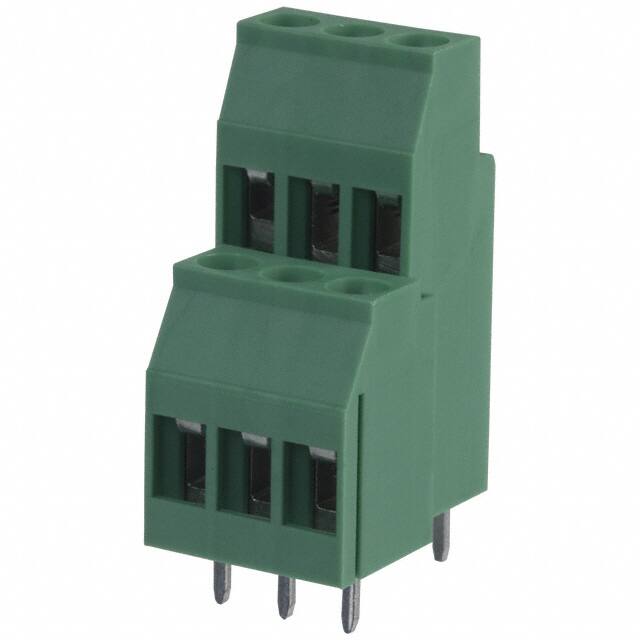

The Phoenix Contact 1721032 is a 6-position wire-to-board terminal block arranged in two levels of three positions each. It features a 5.00mm pitch and uses a screw rising cage clamp wire termination suitable for 12-30 AWG conductors. The block mounts via through-hole and mates horizontally with the PCB.



Electrical ratings include 15A current and 300V voltage, making it suitable for moderate power distribution in industrial control systems. The green housing includes a side interlocking feature that allows multiple blocks to be ganged together for additional positions.



This terminal block is designed for reliable wire retention and easy installation in PCB-based applications. Its compact two-level design saves board space while providing clear wire routing in multi-level wiring scenarios.

1721032 Quick Information

Product Type: Wire to Board Terminal Block
Canonical Name: Phoenix Contact 1721032 - 6 Position 5mm Pitch Wire to Board Terminal Block
Subcategory: Screw Rising Cage Clamp

1721032 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1721032 Features

  • 6 positions arranged in 2 levels.
  • 5mm pitch for compact PCB layout.
  • Rated for 15A and 300V operation.
  • Accepts 12-30 AWG wires.
  • Side interlocking for ganging multiple blocks.

1721032 Applications

  • Ideal for power distribution in industrial controls.
  • Used in PCB-based terminal block assemblies.
  • Suitable for wire-to-board connections in automation.
  • Enables multi-level wiring in tight spaces.

1721032 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1721032 terminal block have?

It has 3 positions per level across 2 levels, totaling 6 positions.

What is the pitch of this terminal block?

The pitch is 5.00mm.

What is the current rating of the 1721032?

The current rating is 15A.

What is the voltage rating?

The voltage rating is 300V.

What mounting type does this terminal block use?

It uses through-hole mounting.

What wire gauge range does the 1721032 accept?

It accepts 12-30 AWG wires.

What termination style does this terminal block have?

It uses a screw rising cage clamp termination.
