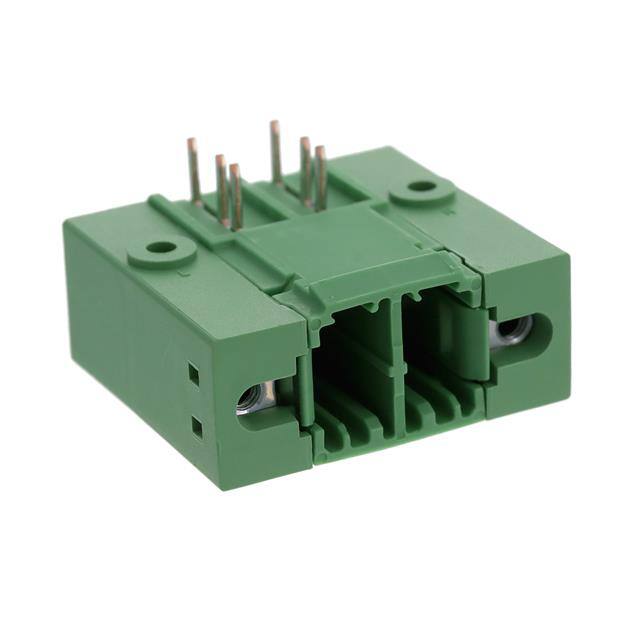

1721012 Phoenix Contact 1721012 is a 2-position terminal block header with 7.62mm pitch, rated for 41A and 630V. It features a through hole, right angle mounting with a shrouded design and mating flange.
Mfr Part #:

1721012

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1721012 is a 2-position terminal block header with 7.62mm pitch, rated for 41A and 630V. It features a through hole, right angle mounting with a shrouded design and mating flange.
✓ Total Stock: 21 pcs
$ Price Range: $3.71

1721012 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Akira Global ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1721012 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Hole Diameter
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Weight
View Similar Products (0)

1721012 Description

Short technical summary and product information.

The Phoenix Contact 1721012 is a terminal block header from the PC 5 series, designed for reliable PCB-to-wire connections. It has 2 positions with a 7.62mm pitch, making it suitable for high-current applications. The header is rated for 41A nominal current and 630V (III/2) or 1000V (II/2), with a UL recognized voltage of 300V.



Electrical safety is ensured by the PA insulating material with UL 94 V0 flammability class and a rated surge voltage of 6kV. The header features a shrouded (4 side) design with a mating and mounting flange for secure locking in high-vibration environments.



Mechanically, the component is through hole mounted with a right angle orientation, allowing for compact PCB layouts. Solder termination is used, with pin dimensions of 0.8x1.0mm. The green color aids visual identification in assemblies.

1721012 Quick Information

Product Type: Terminal Block Header
Series: GFU
Canonical Name: PC 5/ 2-GFU-7,62
Subcategory: Terminal Block Headers

1721012 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1721012 Estimated Pricing

Qty Low High
1+ $3.71 $3.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

1721012 Features

  • 2-position terminal block header with 7.62mm pitch.
  • Rated for 41A nominal current and 630V voltage.
  • Shrouded (4 side) with mating and mounting flange.
  • Through hole, right angle solder termination.
  • Green PA insulating body, UL 94 V0 flammability.

1721012 Applications

  • Power supply and distribution in industrial equipment.
  • PCB-to-wire connections in control cabinets.
  • Suitable for high-current terminal blocks.
  • Used in automation and panel building.

1721012 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1721012 have?

2 positions.

What is the pitch of the 1721012?

7.62 mm.

What is the current rating of the 1721012?

41 A nominal current, 41 A maximum load current.

What is the voltage rating of the 1721012?

Rated voltage (III/2 and III/3): 630 V, (II/2): 1000 V, UL recognized: 300 V.

What is the mounting type of the 1721012?

Through hole, right angle (90°), under board orientation.

What is the color of the 1721012?

Green.

What is the flammability class of the 1721012?

UL 94 V0.
