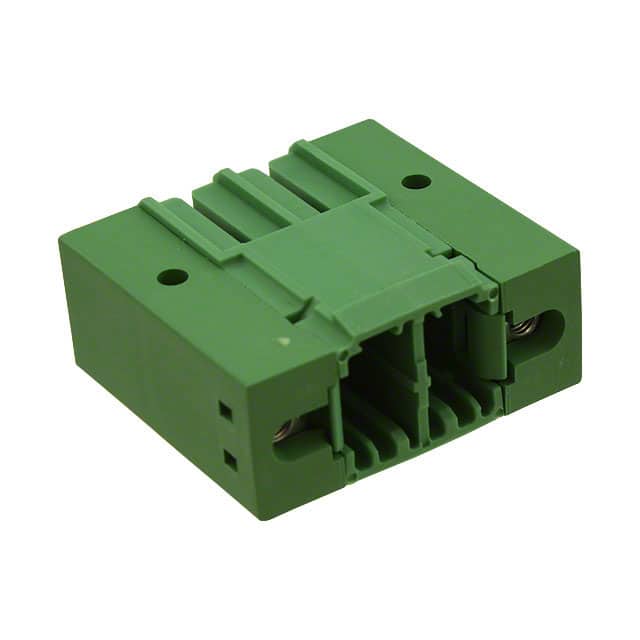

1720796 Phoenix Contact 1720796 is a 2-position, 7.62mm pitch, right angle, through hole header with shrouded (4 side) design, rated for 41 A and 300 V.
Mfr Part #:

1720796

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1720796 is a 2-position, 7.62mm pitch, right angle, through hole header with shrouded (4 side) design, rated for 41 A and 300 V.
✓ Total Stock: 5 pcs

1720796 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1720796 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1720796 Description

Short technical summary and product information.

The Phoenix Contact 1720796 is a 2-position terminal block header from the PC 5 series, featuring a 7.62mm pitch and a right-angle orientation. It is designed for through-hole soldering and has a shrouded (4 side) housing for enhanced protection. The header is rated for a nominal current of 41 A and a rated voltage of 300 V (UL Use Group B), with a rated voltage (III/2) of 630 V and a rated surge voltage (III/2) of 6 kV. The contact mating finish is tin, and the housing is made of green PA insulating material with a flammability class of V0. The header includes a mating and mounting flange for secure connections. Pin dimensions are 0.8 x 1.0 mm, and the recommended hole diameter is 1.3 mm. The overall length is 29.25 mm. This header is suitable for use with PC 5 plugs and is compatible with the Click and Lock system CP-PC RD keying profiles.

1720796 Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Series: PC 5/..-GF
Canonical Name: Phoenix Contact PC 5/ 2-GF-7,62 Header, Male Pins, Shrouded (4 Side), 2 Position, 7.62mm Pitch, Right Angle, Through Hole
Subcategory: Shrouded Header

1720796 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1720796 Features

  • 2-position, 7.62mm pitch header.
  • Right-angle orientation for space saving.
  • Rated for 41 A and 300 V.
  • Shrouded (4 side) design for protection.
  • Includes mating and mounting flange.

1720796 Applications

  • Ideal for PCB-to-wire connections.
  • Used in industrial control panels.
  • Suitable for power distribution systems.
  • Works with PC 5 plug connectors.

1720796 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1720796 have?

It has 2 positions.

What is the pitch of this header?

The pitch is 7.62 mm.

What is the current rating of the 1720796?

The nominal current rating is 41 A.

What is the voltage rating?

The rated voltage is 300 V (UL Use Group B) and 630 V (III/2).

What is the mounting type?

Through hole.

What is the contact finish?

Tin.

What is the flammability class of the housing?

V0 according to UL 94.
