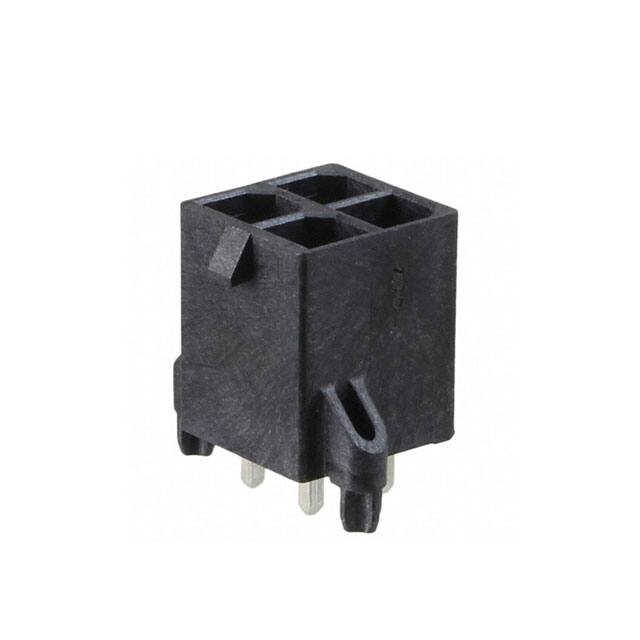

1720650004 Molex 1720650004 is a 4-position, 5.70mm pitch shrouded header with male pins. It features a through-hole solder termination, locking ramp fastening, and a black LCP insulator.
Mfr Part #:

1720650004

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 1720650004 is a 4-position, 5.70mm pitch shrouded header with male pins. It features a through-hole solder termination, locking ramp fastening, and a black LCP insulator.
✓ Total Stock: 4 pcs

1720650004 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Emiteli ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1720650004 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

1720650004 Description

Short technical summary and product information.

The Molex 1720650004 is a 4-position, 5.70mm pitch shrouded header designed for board-to-cable/wire applications. It features a 2-row configuration with square male pins made of copper and a tin contact finish of 0.38µm.



The connector has a 4-wall shrouded design with a locking ramp fastening type for secure mating. The insulator is made of black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. It also includes a board guide and is glow wire compliant.



Mounting is through hole with solder termination. The insulation height is 14.80mm and the contact length is 3.73mm.

1720650004 Quick Information

Product Type: Header
Canonical Name: Molex 1720650004 4-Position 5.70mm Pitch Single Row Header, Male Pins, Through Hole, Solder
Subcategory: Board to Cable/Wire

1720650004 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1720650004 Features

  • 4-position, 5.70mm pitch shrouded header.
  • Male pin contacts with tin finish.
  • Through-hole solder termination.
  • UL94 V-0 rated LCP insulator.
  • Board guide and glow wire compliant.

1720650004 Applications

  • Board-to-cable/wire interconnection applications.
  • Use in appliances requiring glow wire compliance.
  • Suitable for through-hole soldering assembly.
  • Ideal for locking ramp secure mating.

1720650004 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 1720650004 have?

4 positions.

What is the pitch of this connector?

5.70mm.

What is the mounting type for this header?

Through hole.

Is this connector shrouded?

Yes, it is a shrouded - 4 wall header.

What is the contact finish on the Molex 1720650004?

Tin with a thickness of 0.38µm.

What is the insulation material and color?

Liquid Crystal Polymer (LCP), black.

Does the 1720650004 have a locking feature?

Yes, it features a locking ramp fastening type.
