| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
380 pcs
|
380 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

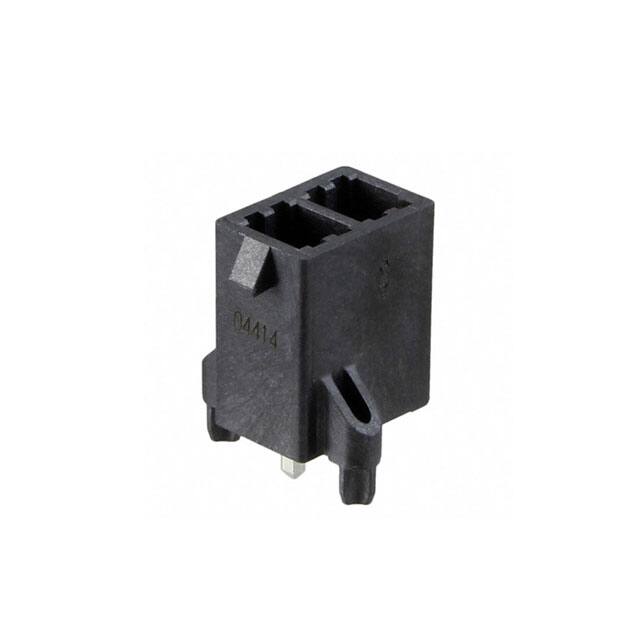

The Molex 1720650002 is a board-to-cable/wire header connector designed for secure and reliable interconnections. It features 2 positions arranged in 2 rows with all positions loaded, utilizing male pin contacts with a square contact shape. The contacts are made of copper with a tin finish and a thickness of 0.38µm.
This connector offers a shrouded design with a 4-wall configuration and a locking ramp fastening type, ensuring a robust mating connection. The insulation is made from black Liquid Crystal Polymer (LCP) with a flammability rating of UL94 V-0. Key dimensions include an insulation height of 14.80mm, a row spacing of 5.70mm, and a contact length of 3.73mm.
Additional features include an integrated board guide and glow wire compliance, enhancing its suitability for various applications where safety and alignment are critical. The mounting type is through hole with solder termination, making it suitable for standard PCB assembly processes.
It has 2 positions arranged in 2 rows, all positions loaded.
The mounting type is through hole with solder termination.
Yes, it is shrouded with a 4-wall design and features a locking ramp fastening type.
The insulation material is Liquid Crystal Polymer (LCP) with a flammability rating of UL94 V-0.
The contacts are made of copper with a tin finish of 0.38µm thickness.
Yes, it includes a board guide and is glow wire compliant.
Row spacing is 5.70mm and contact length is 3.73mm.
