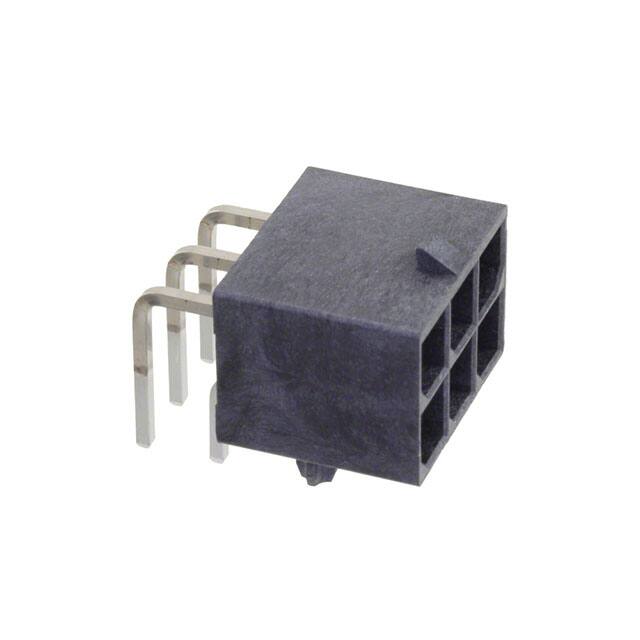

Molex 1720641006 is a rectangular connector header designed for board-to-cable/wire interconnection. It features 6 positions arranged in 2 rows with a pitch of 5.70mm and row spacing of 5.70mm. The connector is shrouded with a 4-wall design and includes a locking ramp for secure mating.
The header is right angle oriented with through hole mounting and solder termination. Contacts are made of copper with tin plating (0.76µm thickness) and square contact shape with 3.60mm length. The housing is black Liquid Crystal Polymer (LCP) with a flammability rating of UL94 V-0. Insulation height is 14.53mm. Additional features include a board guide and glow wire compliance.
Compliance information indicates RoHS3 and REACH unaffected status, and MSL 1 unlimited, though these are unverified. The datasheet is not available. Cross-reference part number WM11211-ND (DigiKey). Electrical ratings and operating temperature are not provided and should be verified with the manufacturer.
6 positions.
5.70mm.
Through hole, right angle.
Tin, 0.76µm thickness.
Locking ramp.
Black LCP, UL94 V-0.
Board guide and glow wire compliant.
