| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

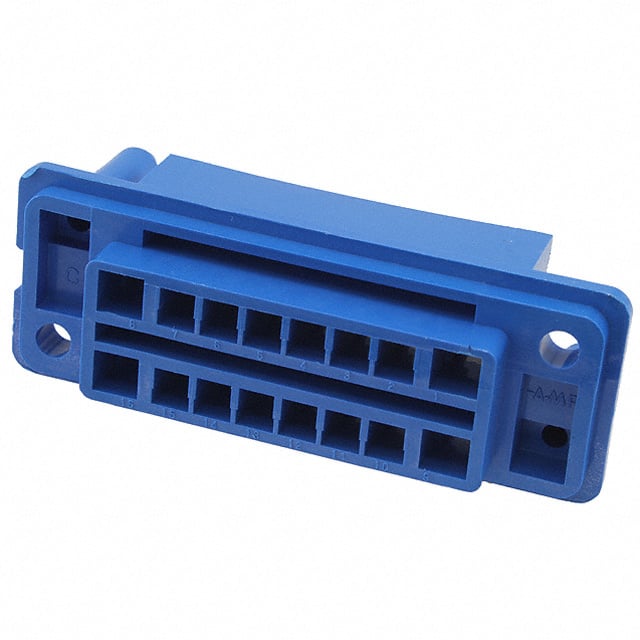

The TE Connectivity 172059-3 is a backplane connector housing designed for drawer-style applications. It accommodates male pins and features 16 positions arranged in 2 rows, with a pitch of 5.00mm (0.197 inches). The housing includes a guide pin for alignment during mating.
This connector housing is intended for panel mount installation and is color-coded blue for easy identification. It is classified as a plug housing, suitable for use in backplane interconnect systems where a secure and reliable connection is required.
The 16 positions are configured as 12 signal contacts plus 4 power contacts, providing a mixed-signal and power interface. The housing is manufactured by TE Connectivity, a leading supplier of connectivity solutions.
The connector housing has 16 positions, configured as 12 signal contacts and 4 power contacts.
The pitch is 5.00mm (0.197 inches).
It is designed for panel mount installation.
The housing is blue.
Yes, it includes a guide pin for alignment during mating.
It is a plug housing for male pins.
