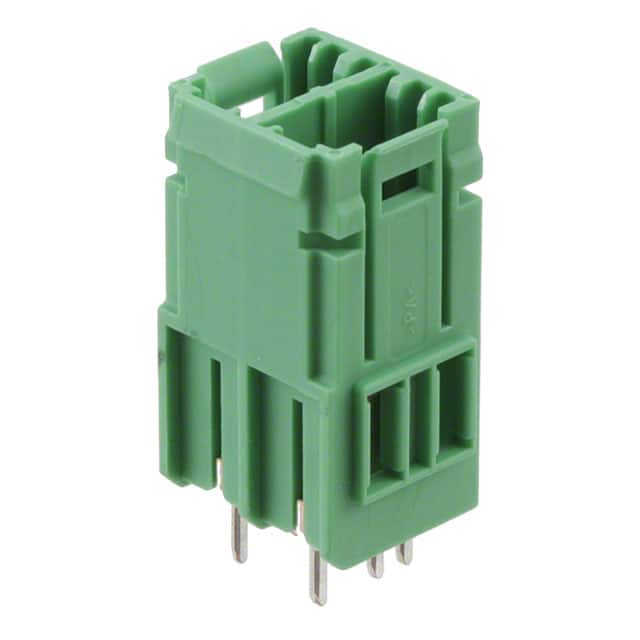

1720576 Phoenix Contact 1720576 is a 2-position terminal block header with a 7.62mm pitch, through hole mounting, and vertical orientation. It features a shrouded (4 side) design with latch lock and tin contact finish.
Mfr Part #:

1720576

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1720576 is a 2-position terminal block header with a 7.62mm pitch, through hole mounting, and vertical orientation. It features a shrouded (4 side) design with latch lock and tin contact finish.
✓ Total Stock: 9 pcs

1720576 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1720576 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1720576 Description

Short technical summary and product information.

The Phoenix Contact 1720576 is a 2-position terminal block header designed for reliable wire-to-board connections. It features a through hole mounting style with solder termination and a vertical header orientation. The shrouded (4 side) design with latch lock provides secure mating and protection for the male pins.



This header has a pitch of 7.62mm (0.300") and is rated for 300V and 41A. The contact mating finish is tin, and the housing is green. It is a single-level header with 2 positions per level.



Typical applications include industrial control systems, power distribution, and automation equipment where a robust and secure connection is required. The latch lock feature ensures the plug remains firmly attached in high-vibration environments.

1720576 Quick Information

Product Type: Terminal Block Header
Series: 1720576
Canonical Name: Phoenix Contact 1720576 - Terminal Block Header, 2 Position, 7.62mm Pitch, Through Hole, Vertical
Subcategory: Terminal Block Headers

1720576 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1720576 Features

  • 2 positions with 7.62mm pitch spacing.
  • Rated for 300V and 41A operation.
  • Through hole mounting with solder termination.
  • Shrouded (4 side) design with latch lock.
  • Vertical header orientation for space-saving layout.

1720576 Applications

  • Industrial control panel wiring connections.
  • Power distribution in automation equipment.
  • Secure connections in high-vibration environments.
  • Wire-to-board interfaces in machinery.

1720576 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1720576 have?

It has 2 positions.

What is the pitch of this terminal block header?

The pitch is 7.62mm (0.300").

What is the voltage and current rating?

It is rated for 300V and 41A.

What mounting type does this header use?

It uses through hole mounting with solder termination.

Does this header have a locking feature?

Yes, it features a latch lock for secure mating.

What is the orientation of the header?

The header is vertical.

What is the contact finish?

The contact mating finish is tin.
