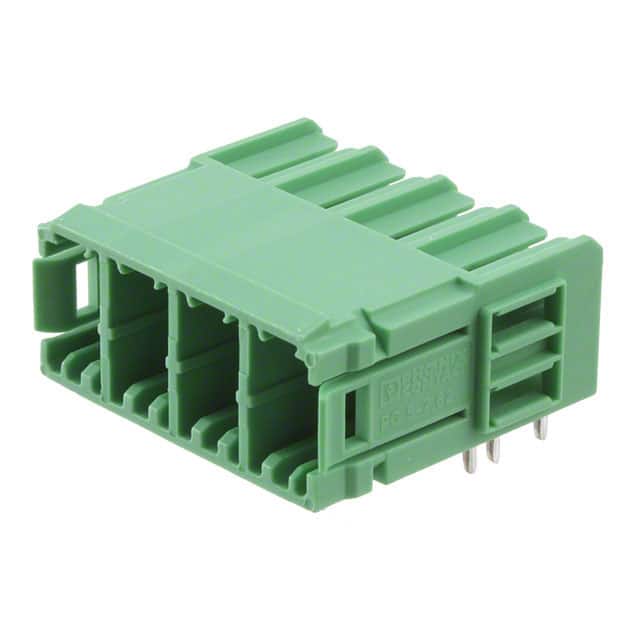

1720482 Phoenix Contact 1720482 is a 4-position, 7.62mm pitch, right angle, through-hole terminal block header with shrouded male pins and tin contact finish.
Mfr Part #:

1720482

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1720482 is a 4-position, 7.62mm pitch, right angle, through-hole terminal block header with shrouded male pins and tin contact finish.
✓ Total Stock: 13 pcs

1720482 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
13 pcs
On Request
13 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1720482 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1720482 Description

Short technical summary and product information.

The Phoenix Contact 1720482 is a 4-position, single-level terminal block header from the PC 5 series. It features a 7.62mm pitch and a right-angle orientation, designed for through-hole soldering. The header is shrouded on four sides and includes a latch lock feature for secure mating with compatible plugs.



Electrical ratings include a nominal current of 41A and a rated voltage of 630V (III/2) or 1000V (II/2). The insulating material is PA with a V0 flammability rating per UL 94. The contact mating surface is tin. The header is UL, cUL, and cULus recognized.



Mechanical dimensions include a length of 29.25mm, pin dimensions of 0.8 x 1.0mm, and a hole diameter of 1.3mm. The product is green in color and is manufactured in Germany.

1720482 Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Series: PC 5/..-G
Canonical Name: Phoenix Contact PC 5/ 4-G-7,62 Header, Male Pins, Shrouded (4 Side), 4 Position, 7.62mm Pitch, Right Angle, Through Hole, Tin
Subcategory: Terminal Block Headers

1720482 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1720482 Features

  • 4 position, 7.62mm pitch header.
  • Right angle orientation for PCB mounting.
  • Rated for 41A and 630V.
  • Shrouded with latch lock feature.
  • UL 94 V0 flammability rated housing.

1720482 Applications

  • Ideal for power distribution in industrial controls.
  • Used in PLC and I/O module connections.
  • Suitable for high-current PCB-to-wire interfaces.
  • Common in automation and machinery applications.

1720482 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1720482 have?

The header has 4 positions.

What is the pitch of the 1720482 header?

The pitch is 7.62mm.

What is the current rating of the 1720482?

The nominal current is 41A.

What is the voltage rating of the 1720482?

The rated voltage is 630V (III/2) and 1000V (II/2).

What mounting type does the 1720482 use?

It uses through-hole mounting.

What is the orientation of the 1720482 header?

The header is right angle (90°).

What is the flammability rating of the 1720482 housing?

The housing material is rated UL 94 V0.
