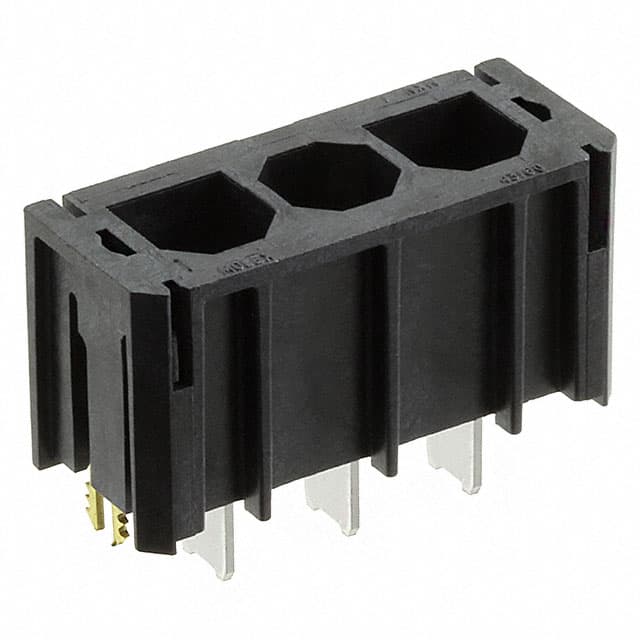

The Molex 1720420302 is a 3-position header from the Super Sabre power connector system. It features male blade contacts on a 7.50mm pitch in a single-row configuration. The header is designed for through-hole solder mounting and includes board lock and finger-proof features for secure and safe installation.
Electrical ratings include 34.0A per blade current and 600V maximum voltage. Contact resistance is 5 milliohms, dielectric withstanding voltage is 5000V, and insulation resistance is 1000 megohms. The operating temperature range extends to +125°C.
The housing is molded from LCP (Liquid Crystal Polymer) and the contacts are high-performance copper alloy with silver plating on the contact area and tin on the solder tail. The connector is rated for 25 mating cycles and supports PCB thicknesses from 1.57 to 3.18 mm. Packaging is trays or tubes.
It has 3 positions in a single row.
The pitch is 7.50 mm (0.295 inches).
The current rating is 34.0A per blade.
The maximum voltage rating is 600V.
It uses through hole mounting with solder termination.
The maximum operating temperature is +125°C.
It is RoHS3 compliant, REACH unaffected, low halogen, and optionally glow wire compliant. MSL is 1 (unlimited).
