| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Dielectric Withstanding Voltage | |
| Features | |
| Halogen Free | |
| Housing Material | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style |

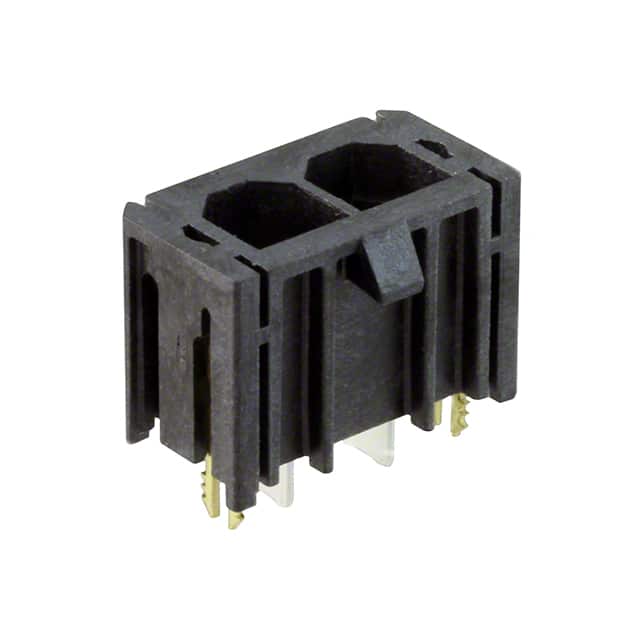

The Molex 1720420202 is a 2-position header connector from the Super Sabre Power Connector System. It features male blade contacts with a 7.50mm pitch and is designed for through hole mounting with solder termination. The connector is rated for 34.0A per blade and 600V, making it suitable for high-current and high-voltage applications.
The header uses a high-performance copper alloy contact material with silver plating on the contact area and tin on the solder tails, with nickel underplating. The housing is made of LCP (Liquid Crystal Polymer) and is black in color. It includes board lock and finger-proof features for secure mounting and safety. The operating temperature range is -40°C to +125°C, compliant with USCAR-2 level 3.
This connector is part of the Super Sabre system, which uses a flat-blade terminal design with four independent points of electrical contact for reliable performance. It is compatible with lead-free wave and reflow soldering processes. The packaging is trays or tubes.
The current rating is 34.0A per blade.
The voltage rating is 600V.
The pitch is 7.50mm (0.295 inches).
It has 2 positions.
It is through hole mounting with solder termination.
The operating temperature range is -40°C to +125°C (USCAR-2 level 3).
Yes, it is RoHS3 compliant as stated in the datasheet.
