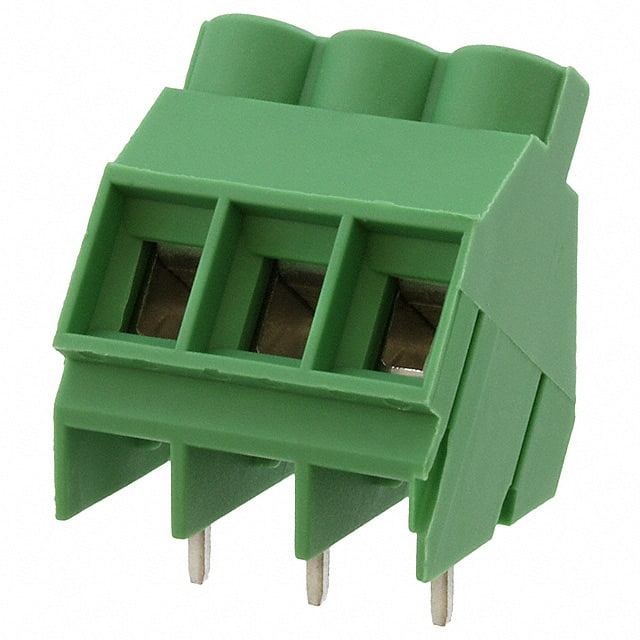

1720046 Phoenix Contact 1720046 is a 3 position wire to board terminal block with 6.35mm pitch, rated for 30A and 300V. It features screw rising cage clamp termination and side interlocking.
Mfr Part #:

1720046

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1720046 is a 3 position wire to board terminal block with 6.35mm pitch, rated for 30A and 300V. It features screw rising cage clamp termination and side interlocking.
✓ Total Stock: 196 pcs

1720046 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
HMB Electronics LLC ✓
Non-Authorised Inventory information
196 pcs
On Request
196 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1720046 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Current
Current Rating
Features
Industrial Grade
Lead Spacing
Lead Style
Mating Orientation
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Storage Temperature
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1720046 Description

Short technical summary and product information.

The Phoenix Contact 1720046 is a 3 position wire to board terminal block designed for reliable PCB connections. It features a 6.35mm pitch and accepts wire gauges from 10 to 30 AWG. The terminal block is rated for 30A and 300V, making it suitable for power distribution applications.



The termination uses a screw rising cage clamp mechanism, ensuring secure wire retention. The mating orientation is at a 35° (145°) angle with the board, allowing for flexible PCB layout. The green housing is through-hole mounted and includes side interlocking features for multi-position assembly.

1720046 Quick Information

Product Type: Wire to Board Terminal Block
Series: COMBICON SMKDS
Canonical Name: Phoenix Contact 1720046 3 Position 6.35mm Pitch Wire to Board Terminal Block
Subcategory: Wire to Board

1720046 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1720046 Features

  • 3 positions with 6.35mm pitch spacing.
  • Rated for 30A and 300V operation.
  • Screw rising cage clamp termination.
  • Accepts 10 to 30 AWG wire.
  • Side interlocking for multi-block assembly.

1720046 Applications

  • Power distribution on PCBs.
  • Industrial control panel wiring.
  • Lighting and HVAC system connections.
  • Automation equipment terminal blocks.

1720046 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 1720046 terminal block have?

It has 3 positions.

What is the pitch of this terminal block?

The pitch is 6.35mm.

What is the current and voltage rating?

It is rated for 30A and 300V.

What wire gauge does this terminal block accept?

It accepts 10 to 30 AWG wire.

What is the mounting type?

Through hole mounting.
