| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Gender | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Process Temperature (Max) | |
| Shell Material, Finish | |
| Shell Plating | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Length | |
| Termination Style | |
| Working Voltage (Max) |

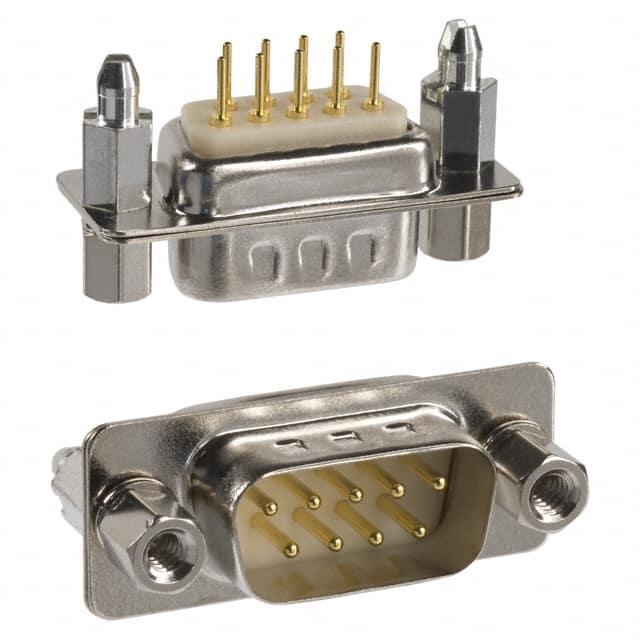

This is a 9-position D-Sub plug from NorComp's 172-E series. It features male pins with gold flash plating for reliable signal integrity. The connector is designed for panel mount and through hole solder termination, with a termination length of 4.80mm. The shell is nickel plated steel with grounding indents and board lock features. The insulator is glass-filled nylon thermoplastic with UL94 V-0 flammability rating. Electrical ratings: 5A current, 250VAC working voltage, insulation resistance 1000 MOhm min, contact resistance 15 mOhm max. Operating temperature range -55°C to +125°C, withstanding process temperature up to 260°C. Suitable for various signal interconnection applications in industrial, telecom, and computer equipment.
9 positions.
5A.
250VAC.
Panel mount and through hole solder.
-55°C to +125°C.
Gold flash.
Yes, RoHS3 compliant.
