| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Process Temperature | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Termination | |
| Termination Style | |
| Voltage Rating |

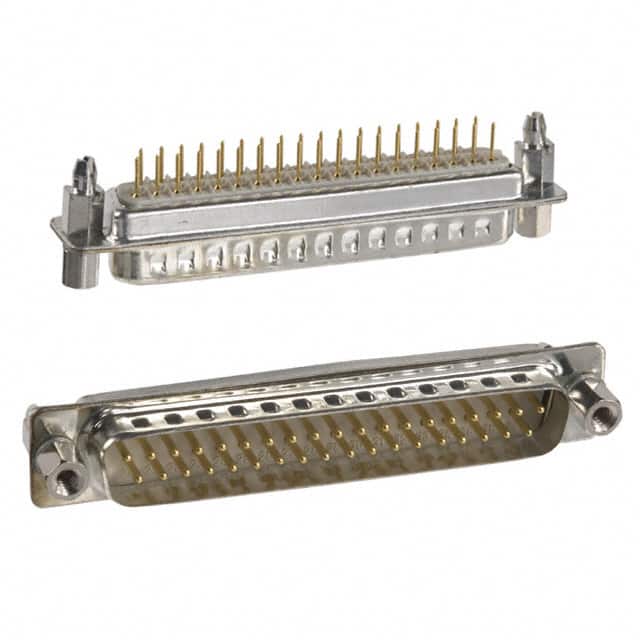

This is a D-Sub plug connector from NorComp Inc., part number 172-037-112R911. It features 37 male pins arranged in 2 rows, with a shell size of 4 (DC, C). The connector is designed for panel mount with through-hole solder termination.
Electrical specifications include a current rating of 5A, voltage rating of 500VAC, contact resistance of 15 mOhms maximum, and insulation resistance of 1000 MOhms minimum. The operating temperature range is -50°C to 100°C.
The insulator is made of PA6T with UL94 V-0 flammability rating. Contacts are brass with gold flash plating. The steel shell is tin plated and features board lock and grounding indents. The flange includes board side (4-40) and mating side female screwlock (4-40).
This connector is RoHS3 compliant. It is suitable for various applications requiring reliable D-Sub connections, such as data communication, industrial control, and instrumentation. The board lock feature ensures secure mounting to the PCB.
37 positions.
5 A.
500 VAC.
Panel mount, through hole.
-50°C to 100°C.
Yes, RoHS3 compliant.
Gold flash.
