| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | 07+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Hardware Option | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Plating Option | |
| Process Temperature | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Temperature Range | |
| Termination | |
| Termination Style | |
| Voltage |

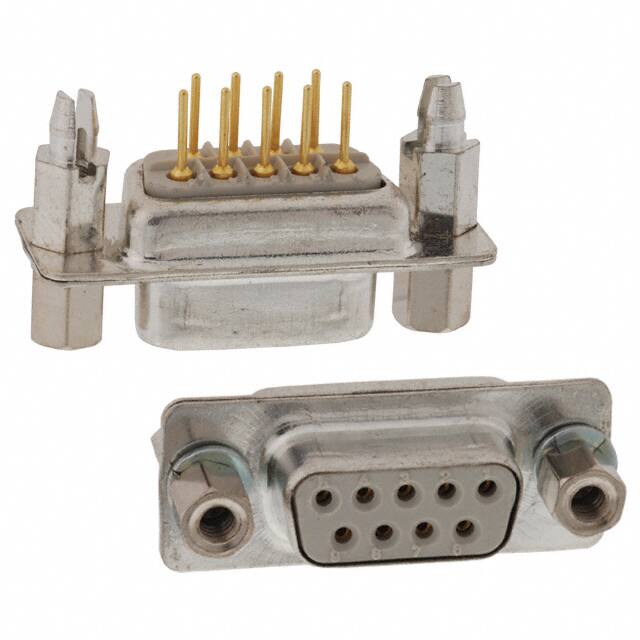

The 172-009-212R911 is a 9-position D-Sub receptacle from NorComp's 172 series. It features female sockets with gold flash contacts for reliable signal transmission. The connector is designed for panel mount with through-hole solder termination, and includes board locks for secure attachment.
Electrical specifications include a current rating of 5A, contact resistance of 15 mOhms max, insulation resistance of 1000 MOhms min, and a voltage rating of 500VAC. The operating temperature range is -50°C to 100°C.
The shell is made of steel with tin plating, and the insulator is UL94 V-0 rated PA6T, capable of withstanding process temperatures up to 260°C. This connector is RoHS compliant and suitable for a wide range of industrial applications.
The connector has 9 positions arranged in 2 rows.
The current rating is 5 Amps.
The voltage rating is 500VAC for 1 minute.
It uses panel mount with through-hole solder termination.
The contacts have a gold flash finish.
The operating temperature range is -50°C to 100°C.
Yes, it is RoHS compliant as verified from the datasheet.
