| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Process Temperature | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Termination Type | |
| Voltage Rating |

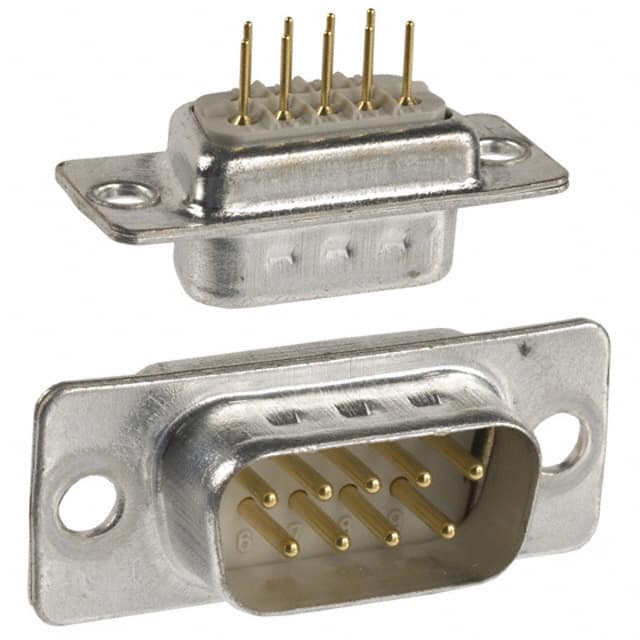

The 172-009-112R001 is a 9-position D-Sub plug connector from NorComp Inc. It features male pins with gold flash contact finish on brass floating contacts. The connector is designed for panel mount installation with through hole solder termination.
The shell is steel with tin plating and includes grounding indents for enhanced EMI performance. The insulator is made of PA6T material rated UL94 V-0, ensuring flame retardancy. Electrical ratings include 5A current capacity and 500VAC dielectric strength. Contact resistance is 15 mOhm maximum, and insulation resistance is 1000 MOhm minimum.
Operating temperature ranges from -50°C to 100°C, with a process temperature of 260°C. This connector is RoHS3 compliant, making it suitable for lead-free assembly processes.
9 positions.
5 A.
500 VAC.
Panel mount with through hole solder termination.
Gold flash.
-50°C to 100°C.
Yes, RoHS3 compliant.
