| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,164 pcs
|
1164 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

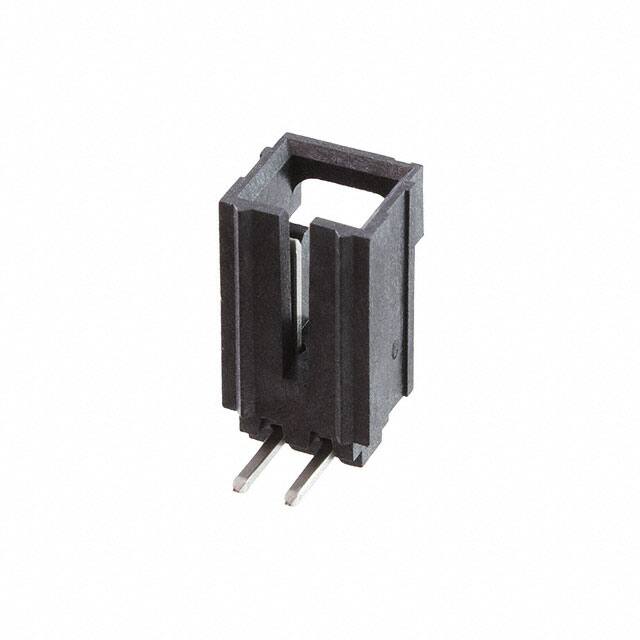

The Molex 1719740002 is a 2-position, single row header from the SL Modular Connector System. It features a 2.54mm pitch and a right angle through hole mounting style with solder termination. The header is fully shrouded with four walls and includes a latch holder fastening system for secure mating.
This connector is rated for 3A current and 250V voltage, with an operating temperature range of -40°C to 105°C. The contacts are made of brass with a 100µin tin finish, and the housing is molded from black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. A polarizing key ensures correct orientation during mating.
Designed for board-to-cable/wire applications, this header is part of the Molex SL Modular Connector System and is compatible with 2.54mm pitch C-Grid and KK product families. The right angle orientation allows for low-profile connections parallel to the PCB surface.
The pitch is 2.54mm (0.100").
It has 2 positions in a single row.
The current rating is 3A.
The voltage rating is 250V.
Through hole, right angle.
-40°C to 105°C.
Yes, it is RoHS3 compliant.
