| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
187 pcs
|
187 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance (Max) | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage (min) | |
| Durability (min) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance (Min) | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Force (min) | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Unmating Force (min) | |
| Voltage Rating |

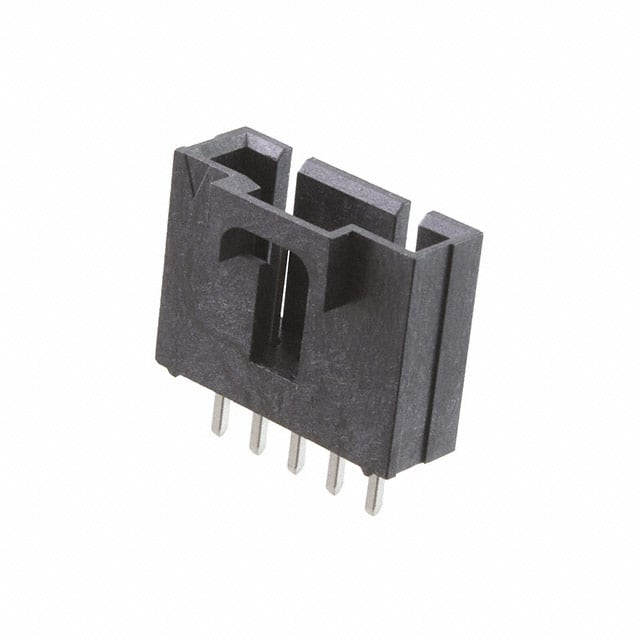

The Molex 1719710005 is a SL Series shrouded header designed for board-to-cable/wire interconnections. This connector features 5 positions arranged in a single row with a 2.54mm pitch. It utilizes through hole mounting with solder termination for secure PCB attachment.
Constructed with a black liquid crystal polymer (LCP) insulator rated UL94 V-0, the header includes a 4-wall shroud and a latch holder for secure mating. The contacts are made of brass with a tin finish (100 microinches) and have a circular contact shape. The header includes a polarizing key to ensure correct orientation during mating.
Electrically, the part is rated for 3A of current and 250V. Electrical performance includes a maximum contact resistance of 15 milliohms, a minimum dielectric withstanding voltage of 600V AC, and a minimum insulation resistance of 10000 megohms. The operating temperature range is -40 to 105 degrees Celsius.
The housing has an insulation height of 11.80mm, and a contact length of 6.10mm. The product is available in tape-and-reel or tube packaging.
5 positions, arranged in a single row.
2.54mm (0.100 inch).
3 Amps.
250 Volts.
Through hole mounting with solder termination.
-40 to 105 degrees Celsius.
Tin, with a thickness of 100 microinches (2.54 micrometers).
