| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
201 pcs
|
201 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

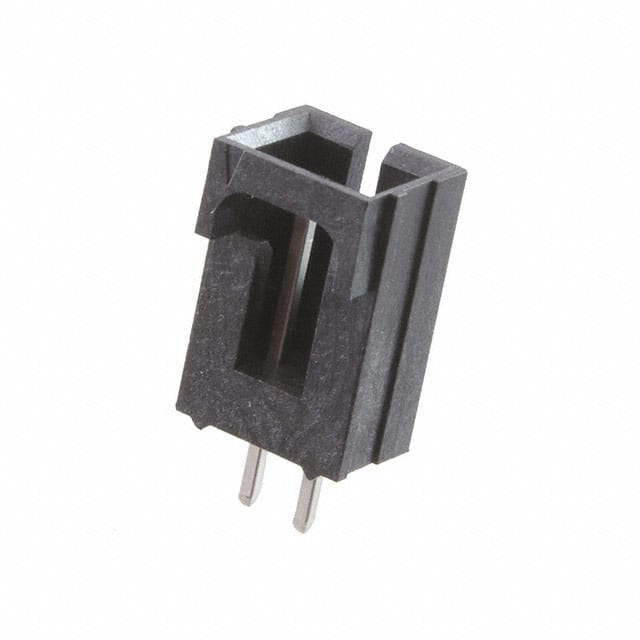

The Molex 1719710002 is a through hole shrouded header designed for board-to-cable/wire connections. It features 2 positions in a single row with a 2.54mm pitch, male pin contacts with circular contact shape, and a latch holder fastening type for secure mating.
The header is constructed with a black liquid crystal polymer (LCP) insulator meeting UL94 V-0 flammability rating, brass contacts with a tin finish (100.0µin thickness), and a 3A current rating with 250V voltage rating. The operating temperature range is -40°C to 105°C, and it includes a polarizing key for correct orientation.
This component is suitable for various electronic assemblies requiring a reliable wire-to-board interface. The through-hole mounting and solder termination make it compatible with standard PCB assembly processes.
The pitch is 2.54mm (0.100").
The current rating is 3A.
The voltage rating is 250V.
It uses through hole mounting.
