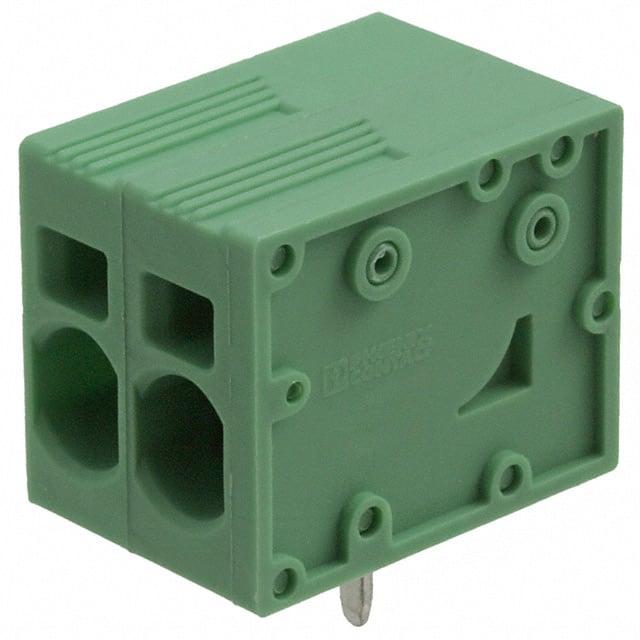

1719192 Phoenix Contact SPT 5/ 2-H-7,5-ZB PCB terminal block with 2 positions, 7.5mm pitch, screwless spring cage termination, rated 41 A / 1000 V (IEC) and 35 A / 600 V (UL).
Mfr Part #:

1719192

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact SPT 5/ 2-H-7,5-ZB PCB terminal block with 2 positions, 7.5mm pitch, screwless spring cage termination, rated 41 A / 1000 V (IEC) and 35 A / 600 V (UL).
✓ Total Stock: 56 pcs

1719192 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1719192 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Country of Origin
Current
Hole Diameter
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1719192 Description

Short technical summary and product information.

The Phoenix Contact 1719192 is a 2-position PCB terminal block from the SPT 5 series, featuring a 7.5mm pitch and a horizontal (0°) mating orientation to the PCB. It uses a tool-free screwless spring cage (push-in) connection method, accepting solid conductors from 0.2 mm² to 10 mm² and stranded conductors from 0.2 mm² to 6 mm² (8-24 AWG).



Electrically, the terminal block is rated for 41 A nominal current and 1000 V rated voltage per IEC/EN-VDE standards, and 35 A / 600 V per UL/CUL Use Group B and C. It has a rated surge voltage of 8 kV for overvoltage category III/2 and III/3. The insulating material is polyamide (PA) with a flammability rating of V0 per UL 94, and the insulating material group is I (CTI ≥ 600).



Mechanically, the part is through-hole solder mounted with pin dimensions of 1.7 x 0.8 mm and requires a 2.1 mm PCB hole diameter. The stripping length is 15 mm. The housing is green and the country of origin is Germany.

1719192 Quick Information

Product Type: PCB Terminal Block
Series: SPT 5
Canonical Name: Phoenix Contact SPT 5/ 2-H-7,5-ZB PCB Terminal Block, 2 Position, 7.5mm Pitch, Screwless Spring Cage
Subcategory: Wire to Board

1719192 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1719192 Features

  • 2 positions with 7.5mm pitch spacing.
  • Screwless spring cage push-in termination.
  • Rated 41 A IEC and 35 A UL current.
  • Rated 1000 V IEC and 600 V UL voltage.
  • V0 flammability rated polyamide housing.

1719192 Applications

  • Power distribution in industrial controls.
  • High-current wire-to-board connections.
  • Tool-free field wiring installations.
  • UL 600 V rated equipment designs.

1719192 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

This terminal block has 2 positions.

What is the pitch of this terminal block?

The pitch is 7.5 mm.

What is the current rating?

The IEC nominal current is 41 A, and the UL rating is 35 A (Use Group B and C).

What is the voltage rating?

The IEC rated voltage is 1000 V, and the UL rated voltage is 600 V (Use Group B and C).

What is the mounting type?

This terminal block is through-hole solder mounted.

What wire gauge does this terminal block accept?

It accepts 8-24 AWG wire.

What is the termination method?

It uses a screwless spring cage (tension clamp) termination.
