| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Height | |
| Hole Diameter | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Width | |
| Wire Gauge | |
| Wire Termination |

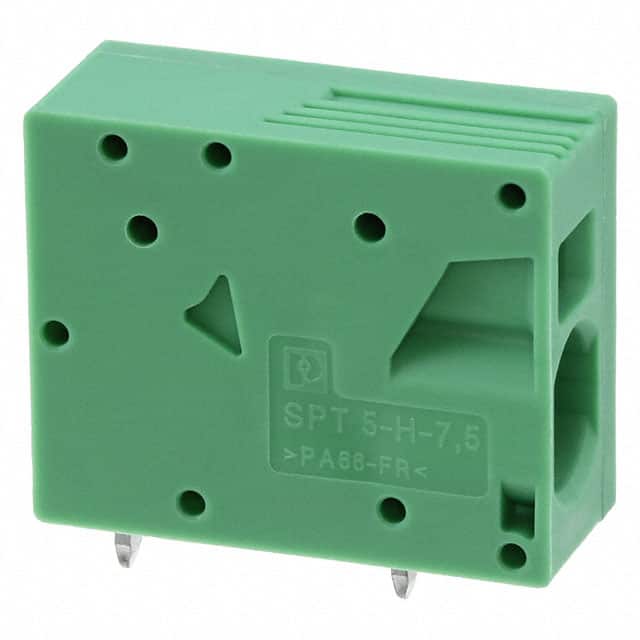

The Phoenix Contact 1719189 (SPT 5/1-H-7,5) is a 1-position push-in spring connection PCB terminal block designed for tool-less wiring. It has a 7.5 mm pitch and accepts wire sizes from 8 to 24 AWG (solid up to 10 mm², flexible up to 6 mm²). Rated for 41 A continuous current and 1000 V (III/2) with a 6 kV surge voltage capability, it is suitable for high-power applications.
Connection uses push-in technology with a 15 mm stripping length. The terminal block mounts via through hole (wave soldering) with solder pins measuring 1.7 x 0.8 mm and a pin spacing of 13.2 mm. The housing is made of PA (polyamide) with a green color and V0 flammability rating per UL 94.
Dimensions include width 9.3 mm, height 19 mm, constructional height 14.4 mm, and a hole diameter of 2.1 mm. The product is packed individually with a minimum order quantity of 50 pieces, weighing 4.8 g each. It is manufactured in Bulgaria with a country of origin and customs tariff number 85369010.
It has 1 position.
The pitch is 7.5 mm.
The nominal current rating is 41 A (maximum load current).
The rated voltage is 1000 V (III/2) and 630 V (III/3).
Through hole mounting (wave soldering).
It accepts 8-24 AWG wire, with maximum solid cross section 10 mm² and flexible cross section 6 mm².
Push-in spring connection.
