1718621 Phoenix Contact 1718621 is a 4 position wire to board terminal block with 7.62mm pitch, rated for 10A and 300V.
Mfr Part #:

1718621

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1718621 is a 4 position wire to board terminal block with 7.62mm pitch, rated for 10A and 300V.
✓ Total Stock: 20 pcs

1718621 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1718621 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1718621 Description

Short technical summary and product information.

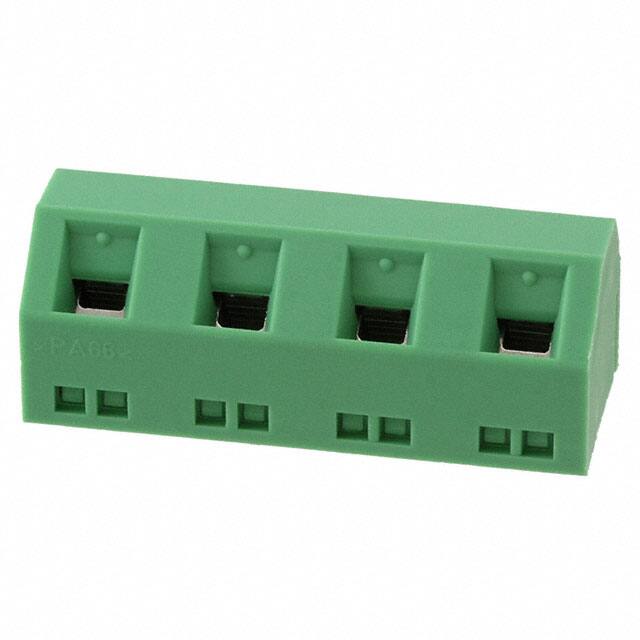

The Phoenix Contact 1718621 is a 4 position wire to board terminal block designed for through hole mounting. It features a 7.62mm (0.300") pitch and a 55° (125°) mating orientation with the board. The terminal block uses a screw - rising cage clamp wire termination method and accepts wire gauges from 14 to 30 AWG. It is rated for 10A current and 300V voltage. The housing is green. This component is suitable for industrial control and power distribution applications where reliable wire connections are required.

1718621 Quick Information

Product Type: Wire to Board Terminal Block
Canonical Name: Phoenix Contact 1718621 4 Position 7.62mm Pitch Wire to Board Terminal Block
Subcategory: Wire to Board

1718621 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1
REACH Status: Non-Compliant

1718621 Features

  • 4 positions with 7.62mm pitch spacing.
  • Screw rising cage clamp wire termination.
  • Rated for 10A and 300V operation.
  • Accepts 14 to 30 AWG wire gauge.
  • Through hole mounting with 55° mating angle.

1718621 Applications

  • Power supply and distribution on PCBs.
  • Industrial control panel wiring.
  • Building automation and lighting systems.
  • Motor and drive connection terminals.

1718621 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1718621 terminal block have?

It has 4 positions per level.

What is the pitch of the Phoenix Contact 1718621?

The pitch is 7.62mm (0.300").

What is the current and voltage rating?

It is rated for 10A and 300V.

What mounting type does this terminal block use?

It uses through hole mounting.

What wire gauge range is supported?

It accepts 14 to 30 AWG wire.

What is the wire termination method?

It uses screw - rising cage clamp termination.

What is the mating orientation of this terminal block?

It has a 55° (125°) angle with the board.
