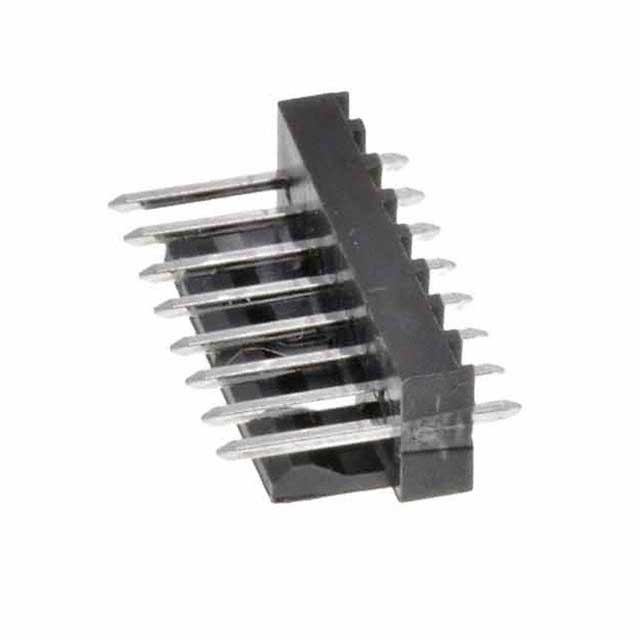

This is a Molex 1718563008 header connector, part of the Molex rectangular connector family. It is a shrouded, single-row header with 8 male pin contacts, pitched at 2.54mm (0.100"). It is designed for board-to-board or cable-to-board applications.
Key specifications include through-hole mounting with solder termination. Contacts are brass with tin plating of 60µin (1.52µm). Overall contact length is 12.95mm, and insulation height is 8.18mm. The insulator material is polyamide (nylon) in black, with a flammability rating of UL94 V-2. Fastening is achieved via a friction lock for secure mating.
This header is suitable for general-purpose interconnect applications requiring reliable connection. The pick-and-place feature indicates it is designed for automated assembly. The shrouded design provides protection for the contacts.
The package is through-hole, single row, with 8 positions. Note: standard package quantity is not verified; consult supplier for packaging details.
8 positions, single row.
2.54mm (0.100").
Through hole, solder termination.
Yes, shrouded with 1 wall.
Friction lock.
Tin, 60µin (1.52µm).
Polyamide (nylon) black, UL94 V-2.
