| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
114 pcs
|
114 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

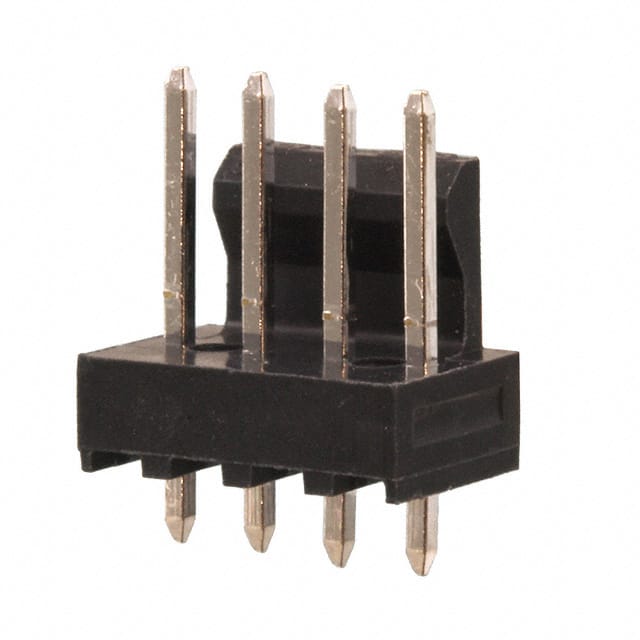

The Molex 1718563004 is a 4-position, single-row, shrouded header designed for board-to-board or cable-to-board interconnects. The connector uses square, tin-plated brass contacts with a contact length of 7.45mm and an overall contact length of 12.95mm. The insulation height is 8.18mm and the housing is black polyamide (nylon) with a UL94 V-2 flammability rating.
The header includes a friction lock for secure mating and a pick-and-place feature for automated assembly. Contacts are finished with 1.52µm of tin. The mounting method is through hole with solder termination, making it suitable for reliable, low-cost PCB connections in a variety of electronic applications.
The header has 4 positions, all loaded.
The pitch is 2.54mm (0.100 inches).
It uses through-hole mounting with solder termination.
