| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
204 pcs
|
204 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:30:05 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

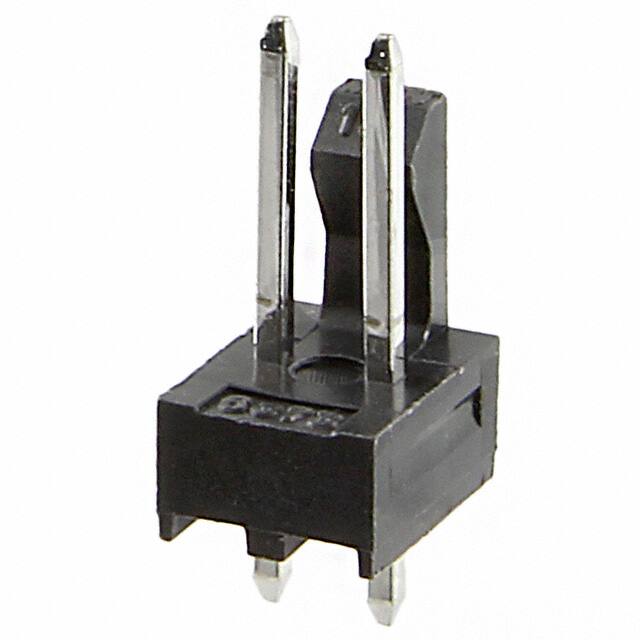

The Molex 1718560002 is a 2-position single row header connector with a 2.54mm (0.100") pitch. It features male pin contacts made of brass with a tin finish and a contact finish thickness of 60.0µin (1.52µm). The connector is shrouded with one wall and includes a friction lock fastening type for secure mating.
The header is designed for through hole mounting with solder termination, making it suitable for board-to-board or cable applications. The insulator is made of black polyamide (PA) nylon with a UL94 V-2 flammability rating. The overall contact length is 0.510" (12.95mm) with a contact length of 0.293" (7.45mm) and an insulation height of 0.322" (8.18mm).
The Molex 1718560002 has 2 positions in a single row.
The pitch is 2.54mm (0.100").
The mounting type is through hole.
The contacts are made of brass with a tin finish.
Yes, it has a friction lock fastening type.
The insulator is made of black polyamide (PA) nylon with a UL94 V-2 flammability rating.
