| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,900 pcs
|
9900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

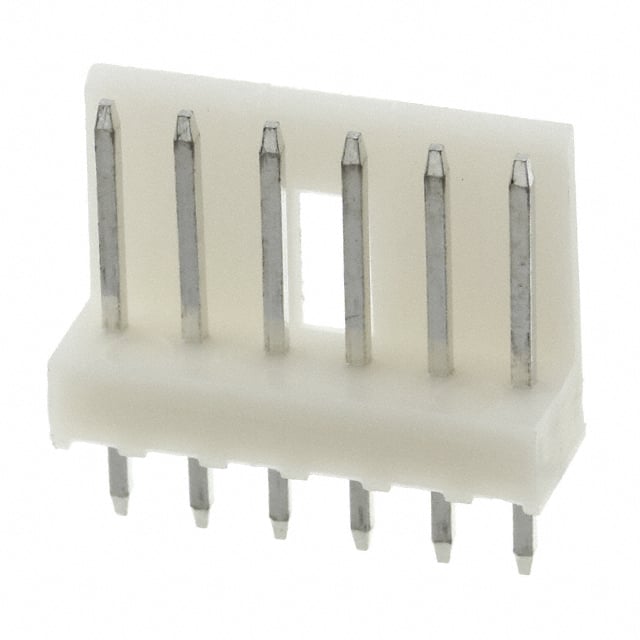

The TE Connectivity 171825-6 is a 6-position, single-row, shrouded header with male pins from the Economy Interconnection Series (EIS). It features a 2.50mm pitch and through-hole mounting with solder termination, making it suitable for wire-to-board applications. The header includes a latch holder fastening type for secure mating and a 1-wall shrouding for contact protection.
Electrical ratings include a current rating of 2A and a voltage rating of 250VAC/350VDC. The contacts are made of brass with a tin finish (0.80µm thickness). The insulator is natural polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating. The operating temperature range is -20°C to 95°C.
This header is part of TE Connectivity's Economy Interconnection Series (EIS), designed for compact, economical wire-to-board connections in industrial and commercial equipment. The through-hole mounting and solder termination provide reliable mechanical and electrical connections in printed circuit board applications.
2.50mm
6 positions in a single row.
2A
250VAC, 350VDC
Through hole with solder termination.
-20°C to 95°C
Tin, 0.80µm thickness.
