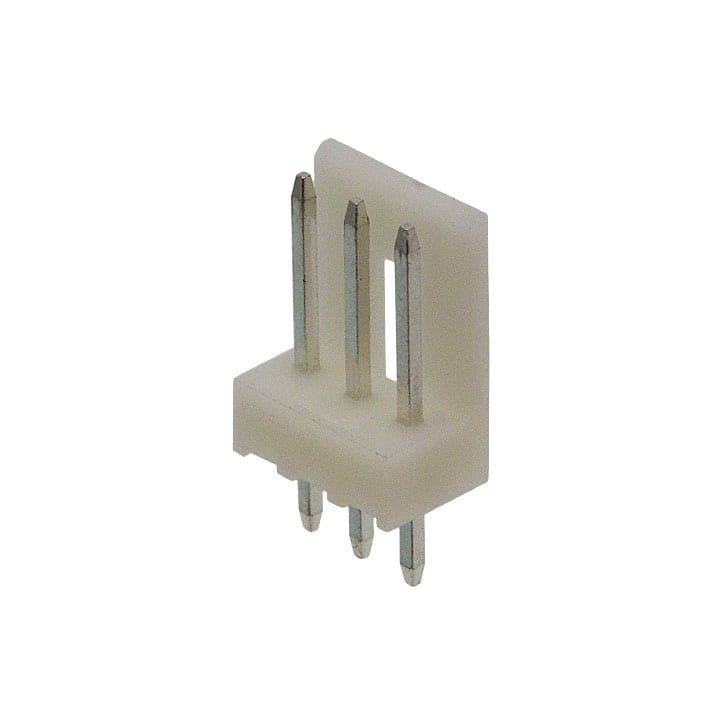

171825-3 The TE Connectivity 171825-3 is a 3-position, single-row header with 2.5mm pitch. It features through-hole mounting, shrouded design, and latch holder fastening.
Mfr Part #:

171825-3

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity 171825-3 is a 3-position, single-row header with 2.5mm pitch. It features through-hole mounting, shrouded design, and latch holder fastening.
✓ Total Stock: 5,083 pcs

171825-3 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
83 pcs
On Request
83 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

171825-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Overall Contact Length
Pitch
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

171825-3 Description

Short technical summary and product information.

This TE Connectivity 171825-3 is a 3-position male pin header from their rectangular connector family. Designed with a 2.5mm pitch, it is suited for board-to-cable/wire connections requiring secure latching.



The connector has a single row with through-hole mounting and solder termination. It features a 1-wall shrouded housing with a latch holder for reliable mating. Contacts are made of brass with a tin finish (0.80µm thickness), and the insulation is polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating. Electrical ratings are 2A current and 250VAC/350VDC voltage.



Mechanical dimensions include an overall contact length of 14.00mm, insulation height of 10.40mm, and contact length of 7.49mm. The natural-colored insulator and square contact shape are standard for this type.



This header is suitable for compact PCB layouts and general-purpose wire-to-board applications where positive locking is desired.

171825-3 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 171825-3 Header, Male Pins, 3 Position, 2.5mm, Through Hole, Shrouded
Subcategory: Male Pins

171825-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

171825-3 Features

  • 3 positions, single row, 2.5mm pitch.
  • Through-hole mounting with solder termination.
  • Shrouded 1-wall design with latch holder.
  • Rated 2A current, 250VAC/350VDC.
  • UL94 V-0 flammability rated insulation.

171825-3 Applications

  • Board-to-cable/wire connections in electronic devices.
  • Suitable for low-power signal transmission.
  • Used in appliances requiring secure latching.
  • Ideal for compact PCB designs with 2.5mm spacing.

171825-3 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 171825-3 have?

3 positions

What is the pitch of the 171825-3?

2.50mm (0.098 inches)

What is the current rating?

2A

What is the voltage rating?

250VAC, 350VDC

What mounting type does the 171825-3 use?

Through Hole

What is the fastening type?

Latch Holder

What is the insulation material?

Polyamide (PA66), Nylon 6/6
