| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,500 pcs
|
14500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

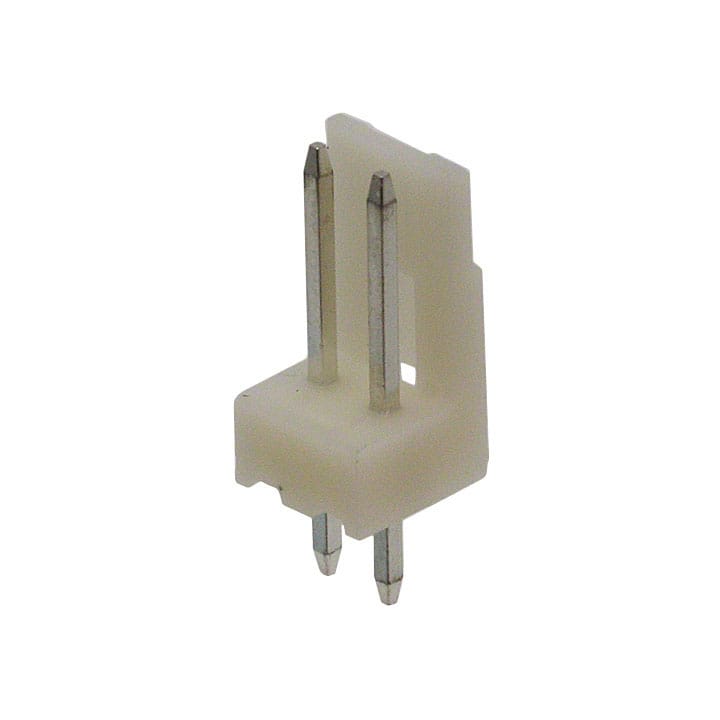

The TE Connectivity 171825-2 is a 2-position, single-row, shrouded header designed for board-to-cable/wire applications. It features a 2.50mm pitch and through-hole mounting with solder termination, making it suitable for wire-to-board connections in compact electronic assemblies.
The header uses male square pins made of brass with a tin contact finish (0.80µm thickness). The natural polyamide (PA66/Nylon 6/6) insulator is rated UL94 V-0 for flammability. A latch holder fastening type secures the mating connector.
Electrical ratings include 2A current and 250VAC/350VDC voltage. The overall contact length is 14.00mm with an insulation height of 10.40mm.
The 171825-2 has 2 positions in a single row.
The pitch is 2.50mm (0.098 inches).
The current rating is 2A.
The voltage rating is 250VAC and 350VDC.
It uses through-hole mounting with solder termination.
The contacts are made of brass with a tin finish (0.80µm thickness).
Yes, it is a shrouded header with 1 wall and a latch holder fastening type.
