| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Maximum Processing Temperature | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

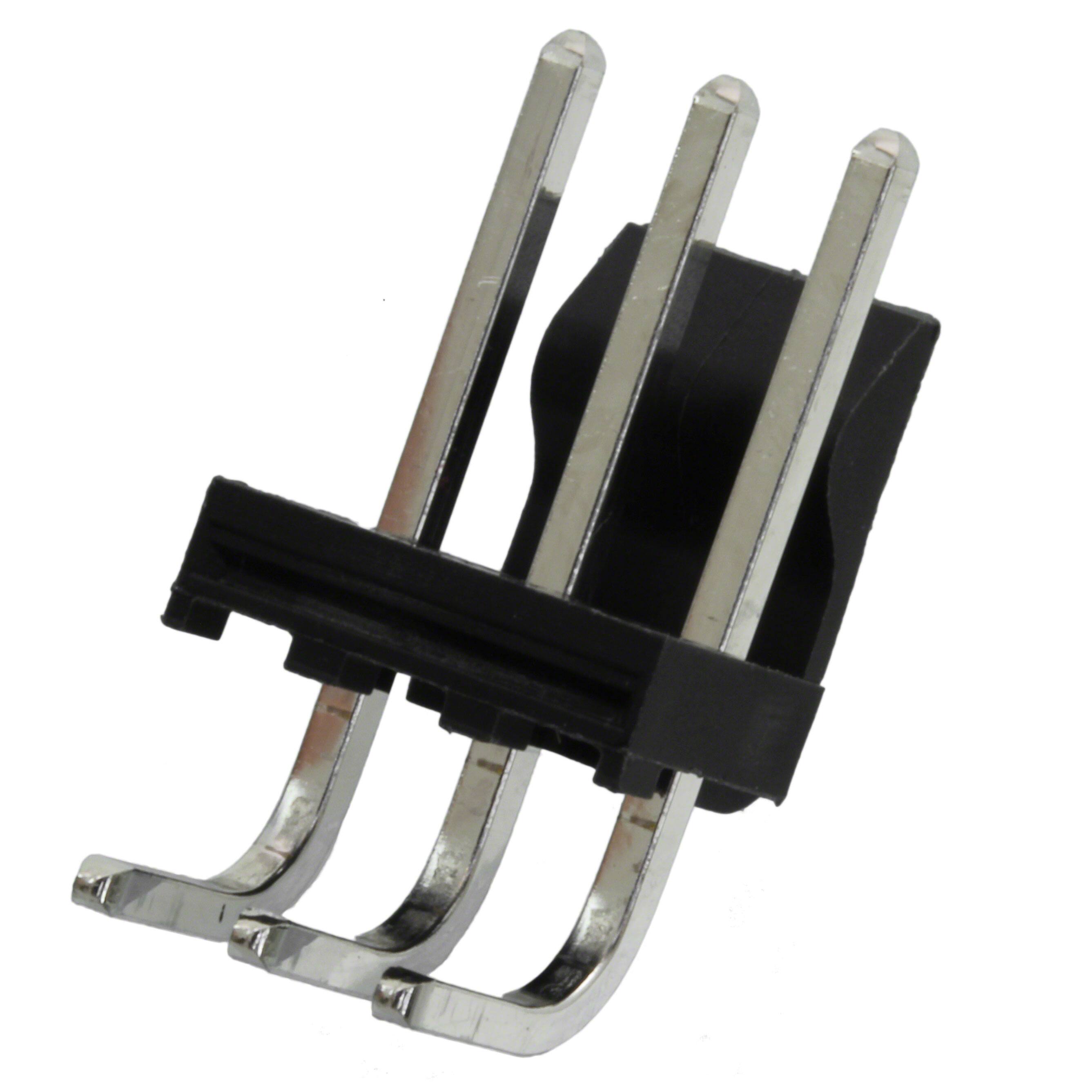

The Molex 1718143003 is a right-angle header from the KK 396 RPC (Reflow Process Compatible) connector system. It has 3 positions with a 3.96mm pitch, designed for through-hole mounting. The header features a shrouded 1-wall design with a friction lock for secure mating, preventing mismating. It supports up to 13.0A per circuit and 600V, making it suitable for low- to mid-power wire-to-board and board-to-board applications. The contacts are made of brass with tin finish, 60µin thickness. The housing is high-temperature nylon (Polyamide) with UL94 V-2 flammability rating, capable of withstanding lead-free solder processing up to +260°C. The header is available in tape and reel packaging. Applications include consumer appliances, medical equipment, and office scanners.
3 positions.
3.96mm (0.156 inches).
13.0A per circuit.
600V.
Through Hole, Right Angle.
Yes, shrouded with 1 wall.
Tin with 60µin (1.52µm) thickness.
