1718140004 Molex 171814-0004 is a 4-position, single-row, right-angle header with 3.96mm pitch, rated for 13.0A and 600V per circuit.
Mfr Part #:

1718140004

Available from 3 distributors
Mfr Name: Molex
Molex
Molex 171814-0004 is a 4-position, single-row, right-angle header with 3.96mm pitch, rated for 13.0A and 600V per circuit.
✓ Total Stock: 1,820 pcs

1718140004 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
850 pcs
On Request
850 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
850 pcs
On Request
850 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1718140004 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

1718140004 Description

Short technical summary and product information.

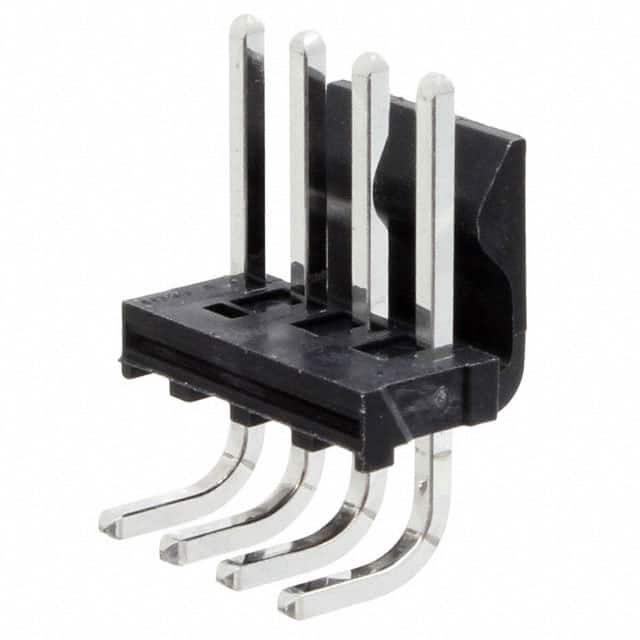

The Molex 171814-0004 is a KK 396 Reflow Process Compatible (RPC) right-angle header with 4 circuits and a 3.96mm pitch. It features a shrouded single-wall design with friction lock for secure mating. The header is through-hole mounted and terminated by solder.



Electrical ratings are 13.0A per circuit and 600V per circuit, suitable for low- to mid-power wire-to-board and board-to-board applications. The housing is made of high-temperature nylon (polyamide) that withstands lead-free solder processing up to +260°C. Contacts are brass with matte-tin over nickel plating (60µin) to inhibit tin whiskering.



The header mates with standard KK receptacles and is designed for drop-in replacement in existing KK header applications. It is used in consumer appliances, medical equipment, office scanners, and automotive control modules.

1718140004 Quick Information

Product Type: Header, Male Pins
Series: 171814
Canonical Name: Molex KK 396 Reflow Process Compatible Right-Angle Header, 4 Circuits, 3.96mm Pitch, Tin Plating
Subcategory: Shrouded Header, Right Angle

1718140004 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

1718140004 Features

  • 4-position right-angle header with 3.96mm pitch.
  • Rated for 13.0A and 600V per circuit.
  • High-temperature nylon housing withstands +260°C reflow.
  • Friction lock for secure mating.
  • Matte-tin over nickel plating inhibits whiskering.

1718140004 Applications

  • Used in home appliances like washers and dryers.
  • Suitable for medical equipment such as respirators.
  • Applied in office scanners and multi-function machines.
  • Ideal for automotive control modules and stereos.
  • Used in gaming consoles and vending machines.

1718140004 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 171814-0004 header have?

It has 4 positions (circuits) in a single row.

What is the pitch of this connector?

The pitch is 3.96mm (0.156 inches).

What are the current and voltage ratings?

The header is rated for 13.0A per circuit and 600V per circuit.

What mounting type does this header use?

It is a through-hole, right-angle mounting header with solder termination.

Is the housing suitable for lead-free soldering?

Yes, the high-temperature nylon housing withstands reflow processes up to +260°C.
