| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

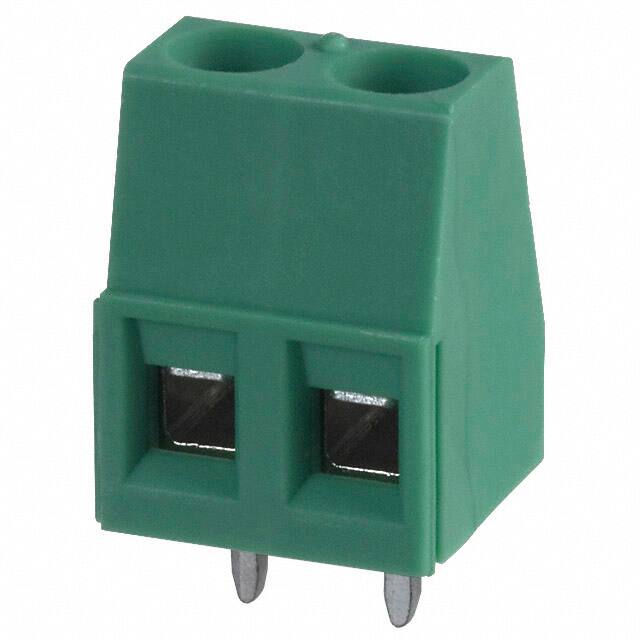

The Phoenix Contact 1715721 is a 2-position wire-to-board terminal block designed for side entry mating. It features a 5.08mm (0.200") pitch and uses a screw rising cage clamp termination for secure wire connections. The block is rated for 15A at 300V and accepts wire sizes from 14 to 30 AWG.
This terminal block is through hole mounted, making it suitable for permanent PCB installation. The green housing provides visual identification, and the side interlocking feature allows multiple blocks to be joined together for multi-position assemblies. The horizontal mating orientation simplifies wiring in tight spaces.
Typical applications include industrial control panels, power distribution on PCBs, and field wiring connections. The component is designed for reliable electrical connections in demanding environments. Note that compliance data (RoHS, REACH, MSL) is currently unverified and should be independently confirmed.
The terminal block has 2 positions.
The pitch is 5.08mm (0.200").
The current rating is 15A and the voltage rating is 300V.
It accepts wire sizes from 14 to 30 AWG.
The terminal block is through hole mounted.
It uses a screw rising cage clamp termination.
Yes, it features side interlocking for joining multiple blocks.
