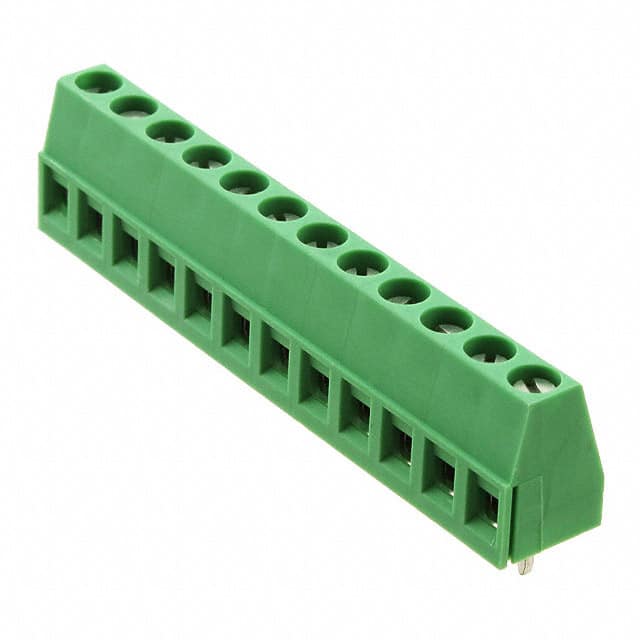

1715129 12-position wire-to-board terminal block with 5.00mm pitch, rated 300V and 15A. Through hole mounting with screw rising cage clamp termination.
Mfr Part #:

1715129

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
12-position wire-to-board terminal block with 5.00mm pitch, rated 300V and 15A. Through hole mounting with screw rising cage clamp termination.
✓ Total Stock: 2 pcs

1715129 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1715129 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Features
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1715129 Description

Short technical summary and product information.

This terminal block from Phoenix Contact (part number 1715129) is a 12-position, single-level wire-to-board connector with a 5.00mm pitch. It features a through hole mounting style and a screw rising cage clamp wire termination. The mating orientation is horizontal with the board, and it includes side interlocking for secure multi-block assembly. The block is rated for 15A and 300V, accepting wire gauges from 14 to 30 AWG. The housing is green in color. This component is suitable for industrial control, power distribution, and general wiring applications where reliable and easy-to-terminate connections are required. The side interlocking feature allows multiple blocks to be joined side-by-side without additional hardware, simplifying panel layout and reducing assembly time.

1715129 Quick Information

Product Type: Wire to Board Terminal Block
Canonical Name: 12 Position Wire to Board Terminal Block, 5.00mm Pitch, Through Hole, Side Entry
Subcategory: Wire to Board

1715129 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1715129 Features

  • 12 positions per level with 5.00mm pitch.
  • Rated for 300V and 15A current.
  • Screw rising cage clamp wire termination.
  • Through hole mounting for sturdy PCB attachment.
  • Side interlocking feature for multi-block assembly.

1715129 Applications

  • Ideal for power distribution in industrial controls.
  • Used in building automation wiring systems.
  • Suitable for relay and PLC interface connections.
  • Common in HVAC control panel wiring.

1715129 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1715129 terminal block have?

12 positions per level.

What is the pitch of the 1715129 terminal block?

5.00mm

What is the current rating of the 1715129?

15A

What is the voltage rating of the 1715129?

300V

What mounting type does the 1715129 use?

Through hole

What wire gauge does the 1715129 accept?

14-30 AWG

What type of wire termination does the 1715129 feature?

Screw - Rising Cage Clamp
