| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Current Rating (Max) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Halogen Free | |
| Impedance | |
| Industrial Grade | |
| Insertion Force to PCB (max) | |
| Lead Spacing | |
| Lead Style | |
| Mating Force | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| SVHC Present | |
| Termination | |
| Voltage Rating (max) |

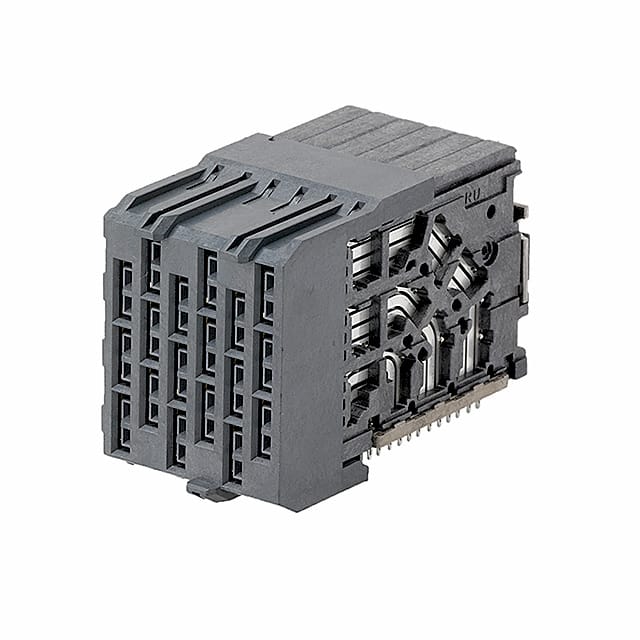

The Molex 1715107136 is a 36-position Impel receptacle connector designed for high-speed backplane and orthogonal daughtercard applications. It features a 6-row by 6-column configuration with a 2.35mm pitch and press-fit termination for reliable solderless assembly. The connector is shielded to reduce electromagnetic interference and supports 18 differential pairs with a nominal impedance of 92 ohms. Electrical ratings include a maximum voltage of 150V AC RMS and a current rating of 0.75A per contact. The gold contact finish with 30.0µin thickness ensures corrosion resistance and reliable mating over repeated cycles. The connector is RoHS3 compliant and halogen free, making it suitable for environmentally sensitive designs.
The connector has 36 positions arranged in 6 rows and 6 columns.
The pitch is 2.35mm (0.092 inches).
The maximum current rating is 0.75A per contact.
The maximum voltage rating is 150V AC RMS.
Through hole, right angle with press-fit termination.
Yes, the connector features a shielded design.
The nominal impedance is 92 ohms.
