| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

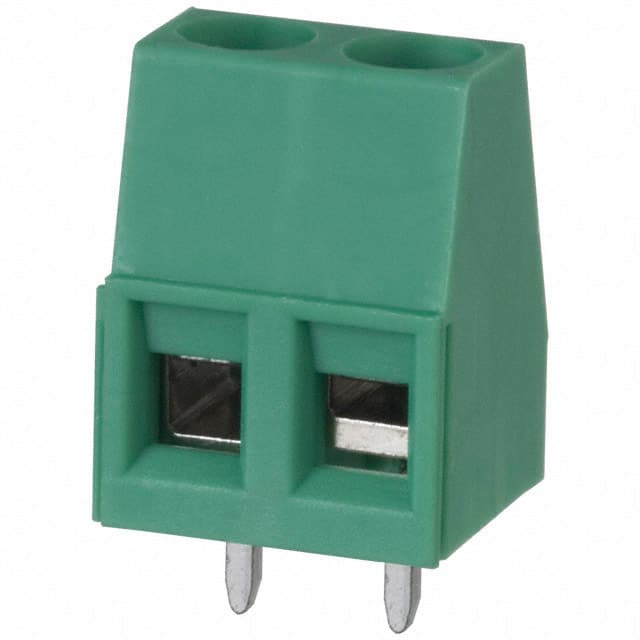

The Phoenix Contact 1715022 is a 2-position, single-level wire-to-board terminal block designed for reliable and secure wire connections in industrial and commercial applications. It offers a 5.00mm pitch and is rated for 15A and 300V, making it suitable for moderate power and signal distribution.
This terminal block uses a screw rising cage clamp termination, which provides a gas-tight connection for wires from 14 to 30 AWG. The mating orientation is horizontal with the board, allowing for side-entry wire routing. The green housing is made for through hole mounting, and the side interlocking feature enables multiple blocks to be joined for additional positions.
Typical applications include power supplies, control systems, and industrial automation equipment where a compact, reliable wire-to-board interface is required. The 5.00mm pitch balances density with ease of wiring.
It has 2 positions per level.
The pitch is 5.00mm (0.197 inches).
It is rated for 15A and 300V.
It accepts 14 to 30 AWG wire.
Through hole mounting.
Screw - Rising Cage Clamp termination.
Yes, it features side interlocking for multi-block assembly.
