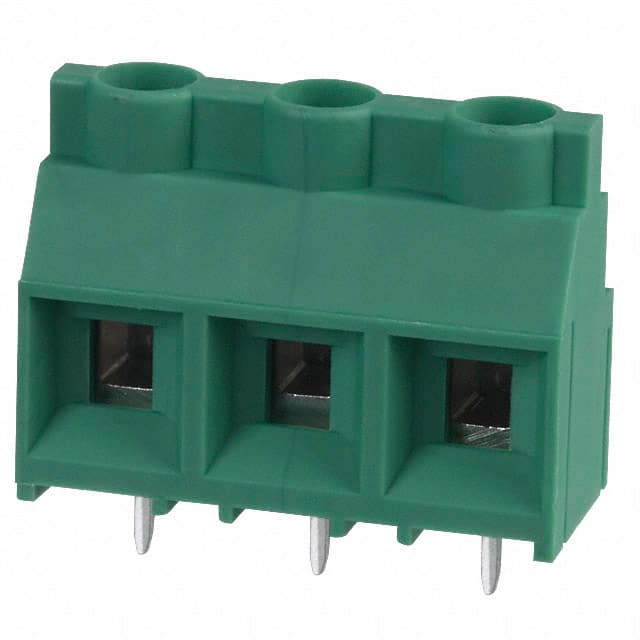

1714984 Phoenix Contact 1714984 is a 3-position wire to board terminal block with 9.53mm pitch. It features a screw rising cage clamp termination and through hole mounting.
Mfr Part #:

1714984

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1714984 is a 3-position wire to board terminal block with 9.53mm pitch. It features a screw rising cage clamp termination and through hole mounting.
✓ Total Stock: 2 pcs

1714984 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1714984 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Features
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1714984 Description

Short technical summary and product information.

The Phoenix Contact 1714984 is a 3-position wire to board terminal block designed for reliable PCB connections. It uses a screw rising cage clamp termination method, accepting wire gauges from 10 to 30 AWG. The pitch is 9.53mm (0.375 inches), and the mating orientation is horizontal with the board.



This terminal block is rated for 30 Amps and 600 Volts, making it suitable for power distribution and industrial control applications. The single-level green housing includes side interlocking features, allowing multiple blocks to be ganged together without tools.



The through hole mounting provides a robust mechanical connection to the printed circuit board. The rising cage clamp design ensures a secure gas-tight connection for solid or stranded wires.

1714984 Quick Information

Product Type: Wire to Board Terminal Block
Canonical Name: Phoenix Contact 1714984 Wire to Board Terminal Block, 3 Position, 9.53mm Pitch, Screw Rising Cage Clamp, Through Hole
Subcategory: Terminal Block Accessories

1714984 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1714984 Features

  • 3 positions with 9.53mm (0.375 inch) pitch.
  • Screw rising cage clamp wire termination.
  • Rated for 30 Amps and 600 Volts.
  • Accepts wire from 10 to 30 AWG.
  • Through hole mounting with side interlocking.

1714984 Applications

  • PCB power distribution in industrial controls.
  • Wire to board connections in lighting systems.
  • Used in building automation and HVAC equipment.
  • Suitable for power supply and panel applications.

1714984 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 1714984 terminal block have?

It has 3 positions.

What is the pitch of the Phoenix Contact 1714984?

The pitch is 9.53mm (0.375 inches).

What is the current rating of the 1714984?

It is rated for 30 Amps.

What is the voltage rating of the 1714984?

It is rated for 600 Volts.

What is the mounting type for this terminal block?

The mounting type is Through Hole.
