| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connection Method | |
| Contact Mating Finish | |
| Country of Origin | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

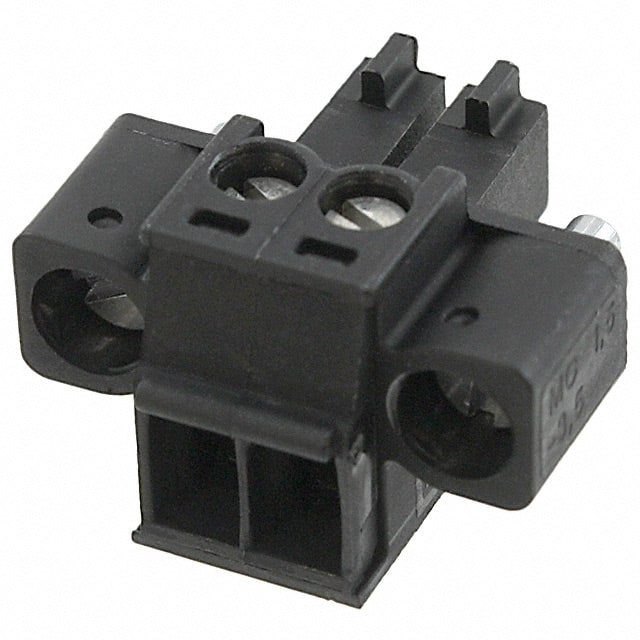

The Phoenix Contact 1714977 is a plug component from the MC 1,5/..-STF series, designed for printed-circuit board connectors. It has 2 positions with a 3.5mm pitch and uses a screw connection with rising cage clamp for secure wire termination. The plug accepts wire sizes from 0.14 to 1.5 mm² (28 to 16 AWG) and is rated for 8A nominal current and 160V nominal voltage (300V UL/CUL).
The plug features female sockets with tin-plated contacts and a black housing. It is designed for free hanging (in-line) mounting with a 180° wire entry angle. A mating flange ensures secure locking with the header. The packing unit is 1 piece with a minimum order quantity of 500 pieces.
This component is suitable for use in a variety of industrial control and automation applications where reliable screw termination is required. The compact 3.5mm pitch allows for high-density wiring. The plug is UL and CUL rated for Use Group B and D at 300V/8A.
2 positions.
3.5 mm (0.138 inches).
8 A (nominal and UL/CUL Use Group B and D).
300 V for UL/CUL Use Group B and D; nominal voltage is 160 V.
Free hanging (in-line).
Solid and stranded conductors from 0.14 to 1.5 mm² (28 to 16 AWG).
Screw connection with rising cage clamp.
