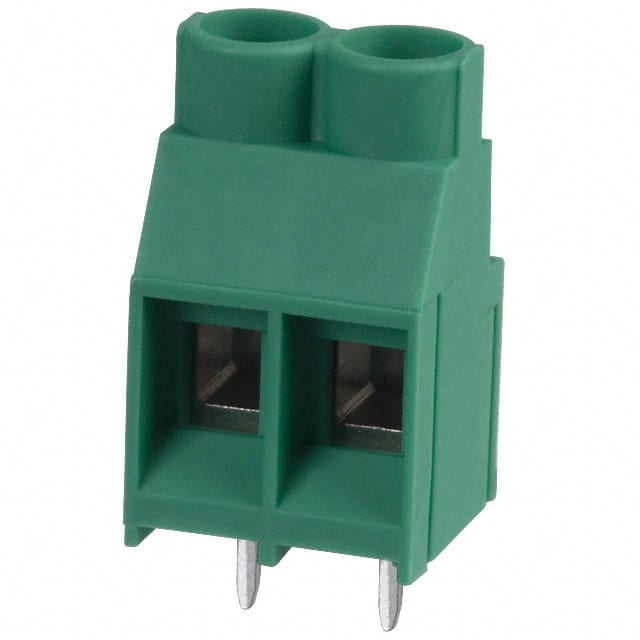

1714955 Phoenix Contact 1714955 is a 2 position, 6.35mm pitch wire to board terminal block with screw rising cage clamp termination, rated for 30A and 300V.
Mfr Part #:

1714955

Available from 3 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1714955 is a 2 position, 6.35mm pitch wire to board terminal block with screw rising cage clamp termination, rated for 30A and 300V.
✓ Total Stock: 178 pcs

1714955 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
112 pcs
On Request
112 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
35 pcs
On Request
35 pcs On Request 1 On Request On Request 2012 On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
31 pcs
On Request
31 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1714955 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Features
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1714955 Description

Short technical summary and product information.

The Phoenix Contact 1714955 is a 2 position wire to board terminal block with a 6.35mm pitch. It features a screw rising cage clamp wire termination and a horizontal mating orientation with the board. The terminal block is rated for 30A and 300V, accommodating wire gauges from 10 to 30 AWG. It is designed for through hole mounting and comes in a green color. Side interlocking allows for modular assembly of multiple blocks. This component is suitable for power distribution and control applications requiring a reliable, high-current connection.

1714955 Quick Information

Product Type: Wire to Board Terminal Block
Canonical Name: Phoenix Contact 1714955 2 Position 6.35mm Pitch Wire to Board Terminal Block
Subcategory: Terminal Block Accessories

1714955 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1714955 Features

  • 2 positions with 6.35mm pitch spacing.
  • Rated for 30A at 300V.
  • Accepts 10 to 30 AWG wire.
  • Screw rising cage clamp termination.
  • Through hole mounting with side interlocking.

1714955 Applications

  • Power distribution in industrial control panels.
  • High current wire to board connections.
  • Modular terminal block assemblies.
  • Through hole PCB power connections.

1714955 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1714955 have?

2 positions per level, 1 level total.

What is the pitch of this terminal block?

6.35mm (0.250 inches).

What is the current and voltage rating?

30A and 300V.

What wire gauge does it accept?

10 to 30 AWG.

What is the mounting type?

Through hole.

What termination style does it use?

Screw rising cage clamp.

Does it have any interlocking feature?

Yes, side interlocking.
