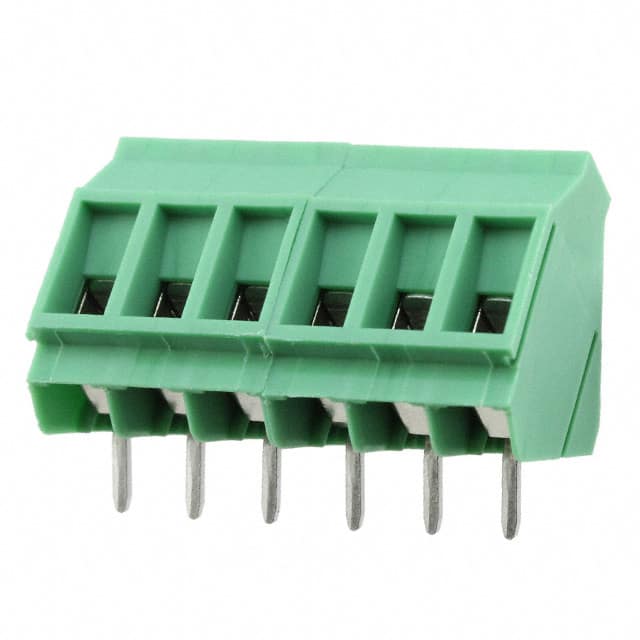

1713286 Phoenix Contact 1713286 is a 6-position wire to board terminal block with 5.08mm pitch, rated 15A and 300V. It features screw rising cage clamp termination and side interlocking for modular assembly.
Mfr Part #:

1713286

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1713286 is a 6-position wire to board terminal block with 5.08mm pitch, rated 15A and 300V. It features screw rising cage clamp termination and side interlocking for modular assembly.
✓ Total Stock: 83 pcs

1713286 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
83 pcs
On Request
83 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1713286 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Features
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1713286 Description

Short technical summary and product information.

The Phoenix Contact 1713286 is a 6-position wire to board terminal block designed for through-hole mounting. It supports a 5.08mm pitch and accepts wire gauges from 12 to 30 AWG. The wire termination uses a screw rising cage clamp mechanism, ensuring secure connections.



This terminal block is rated for 15 A current and 300 V voltage, making it suitable for power distribution and control circuits. The 35° (145°) mating orientation allows for angled wire entry, facilitating routing in tight spaces.



The green housing is made of durable material. Side interlocking feature allows multiple blocks to be joined together for larger assemblies. The through-hole mounting provides reliable mechanical attachment to the PCB.

1713286 Quick Information

Product Type: Wire to Board Terminal Block
Canonical Name: 6 Position Wire to Board Terminal Block, 5.08mm Pitch, 15A, 300V, Screw Rising Cage Clamp, Through Hole
Subcategory: Wire to Board

1713286 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1713286 Features

  • 6 positions with 5.08mm pitch spacing.
  • Rated for 15A current and 300V voltage.
  • Screw rising cage clamp wire termination.
  • Accepts 12 to 30 AWG wire sizes.
  • Side interlocking for modular assembly.

1713286 Applications

  • Used in industrial control and power distribution.
  • Suitable for PCB wire-to-board connections.
  • Ideal for space-constrained angled wiring.

1713286 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

It has 6 positions per level.

What is the pitch of this terminal block?

The pitch is 5.08mm (0.200 inches).

What is the current rating?

The current rating is 15 A.

What is the voltage rating?

The voltage rating is 300 V.

What mounting type is used?

Through hole mounting.

What wire gauge range does it accept?

It accepts 12 to 30 AWG wire.

What termination method is used?

Screw - Rising Cage Clamp termination.
