| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
153 pcs
|
153 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

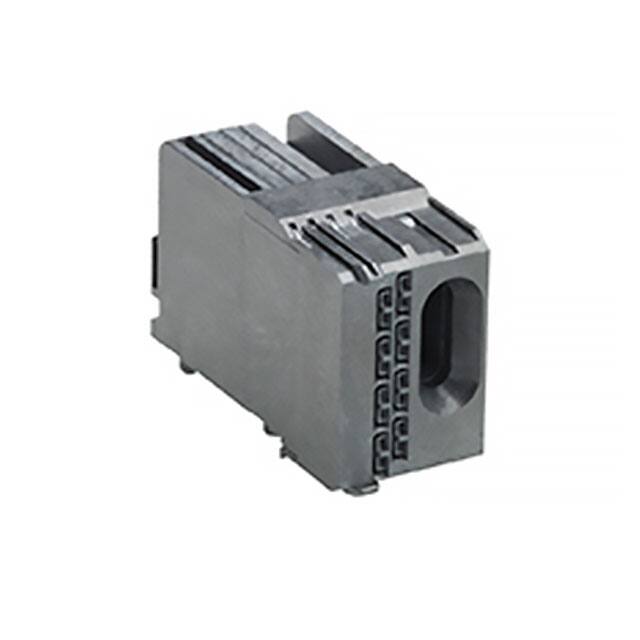

The Molex 1713209032 is a specialized backplane connector from the Impel Guide Right series. It is a 16-position receptacle with female sockets arranged in 8 rows and 2 columns at a 1.90mm pitch. The connector features a through hole, right angle mounting with press-fit termination for reliable solderless assembly.
This connector is designed for coplanar and daughtercard usage and includes a board guide and shielding for enhanced signal integrity. The contact layout supports 8 differential pairs, and the contacts are finished with 30.0µin (0.76µm) gold for corrosion resistance and reliable mating cycles.
The housing is black and the connector is RoHS3 compliant and REACH unaffected. It is suitable for high-speed backplane applications requiring a compact, shielded interconnect solution.
Receptacle, Female Sockets; Impel, Guide Right style.
16 positions, all loaded, arranged in 8 rows and 2 columns.
1.90mm (0.075") pitch.
Through hole, right angle mounting with press-fit termination.
Gold, 30.0µin (0.76µm) thickness.
8 differential pairs.
Board guide and shielding.
