| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,010 pcs
|
1010 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

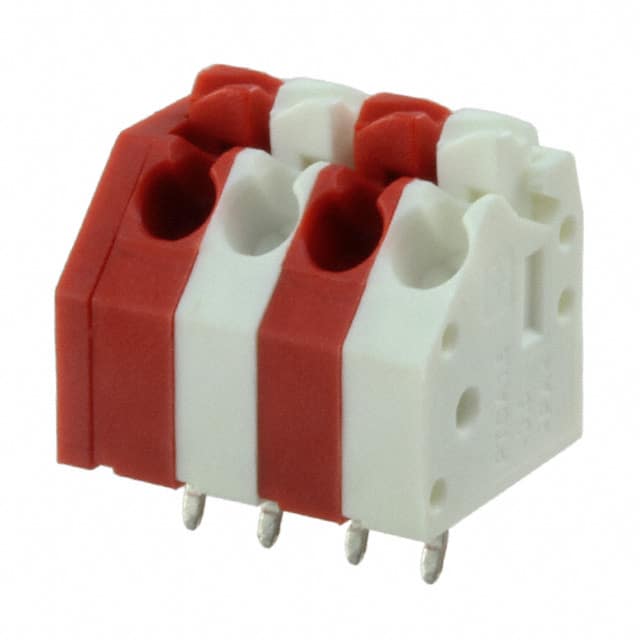

This Phoenix Contact 1713088 is a 4-position wire to board terminal block designed for through hole mounting. It features a 3.50mm (0.138 inch) pitch and a single level configuration. The wire termination utilizes a screwless spring cage, tension clamp mechanism, enabling fast and reliable wire connections without the need for tools. The mating orientation is 45° (135°) relative to the board, suitable for space-constrained layouts. Electrically, it is rated for 2 amperes continuous current and 300 volts, accommodating wire gauges from 16 to 24 AWG. This component is ideal for industrial control, power distribution, and signal interconnection applications where secure and vibration-resistant terminations are required on printed circuit boards.
It has 4 positions on a single level.
The pitch is 3.50mm (0.138 inches).
It is rated for 2 amperes and 300 volts.
Through hole mounting.
Screwless spring cage with tension clamp.
45° (135°) angle with board.
Accepts 16-24 AWG wire.
