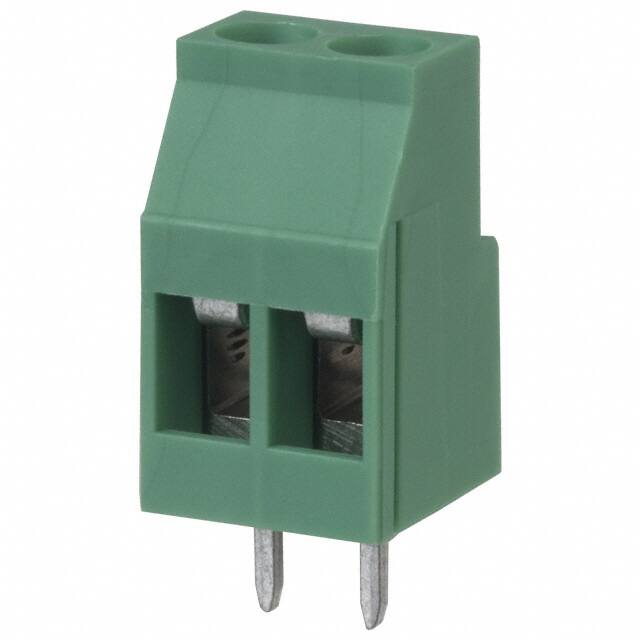

1711725 Phoenix Contact 1711725 is a 2 position wire to board terminal block with 5.08mm pitch, rated 15A and 300V. It features a screw rising cage clamp termination and through hole mounting.
Mfr Part #:

1711725

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1711725 is a 2 position wire to board terminal block with 5.08mm pitch, rated 15A and 300V. It features a screw rising cage clamp termination and through hole mounting.
✓ Total Stock: 148 pcs

1711725 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
95 pcs
On Request
95 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
53 pcs
On Request
53 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1711725 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Features
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1711725 Description

Short technical summary and product information.

The Phoenix Contact 1711725 is a 2 position wire to board terminal block designed for reliable PCB connections. It has a 5.08mm pitch and accepts wire gauges from 12 to 30 AWG. The screw rising cage clamp termination ensures secure wire retention.



Rated for 15A and 300V, this terminal block is suitable for power and signal distribution in industrial and commercial equipment. The side entry mating orientation allows horizontal wire routing relative to the PCB.



The component is through hole mounted and comes in a green housing. Side interlocking features enable multiple blocks to be joined for additional positions without tools.

1711725 Quick Information

Product Type: Wire to Board Terminal Block
Canonical Name: Phoenix Contact 1711725 2 Position 5.08mm Pitch Wire to Board Terminal Block
Subcategory: Wire to Board

1711725 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1711725 Features

  • 2 positions with 5.08mm pitch spacing.
  • Rated for 15A and 300V operation.
  • Screw rising cage clamp wire termination.
  • Through hole mounting for PCB attachment.
  • Side interlocking for multi-block assembly.

1711725 Applications

  • Power distribution on printed circuit boards.
  • Signal connections in industrial control panels.
  • Wire to board interfaces in automation equipment.
  • Field wiring terminations in commercial electronics.

1711725 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1711725 have?

It has 2 positions (1 level with 2 positions per level).

What is the pitch of this terminal block?

The pitch is 5.08mm (0.200 inches).

What is the current and voltage rating?

It is rated for 15A and 300V.

What wire gauge does it accept?

It accepts wire gauges from 12 to 30 AWG.

What is the mounting type?

Through hole mounting.

What termination style does it use?

Screw rising cage clamp termination.
